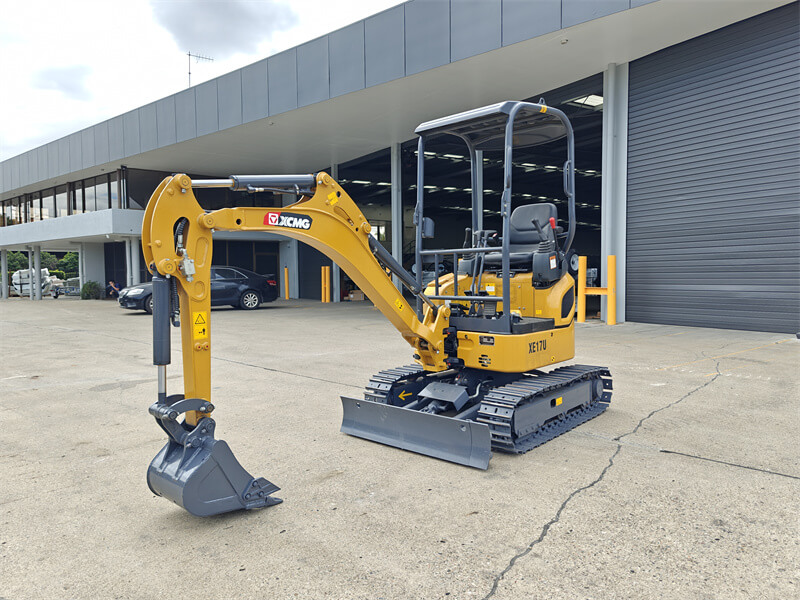

XCMG XE17U Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | XE17U |
| Weight | 1.8 t |
Equipment Overview
The XCMG XE17U is a 1.795-tonne mini excavator built for tough jobs in tight corners that demand precision control, with zero-tail swing, a hydraulic retractable undercarriage, boom swing and both short and long arm options. The tail always stays within the width of the tracks when extended, letting the canopy rotate through its full range even in the tightest spaces, and the machine is built around the operator for optimal ergonomics with a large, convenient entry to the seat.
Power comes from a Kubota D902 3-cylinder engine producing 11.8 kW (15.8 hp), paired with a reliable Bosch Rexroth hydraulic pump delivering up to 64.4 L/min of flow. Bucket digging force reaches 16 kN and arm digging force 10 kN, delivered through a reinforced arm, stick and bucket for exceptional breakout performance. Double flange track rollers add durability, a colour LCD panel display gives excellent machine awareness, and the boom cylinder is mounted above the boom for added safety.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D902, 3-cylinder diesel |
| Power Output | 11.8 kW (15.8 hp) |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, Bosch Rexroth pump |
| Drive Type | Rubber track, variable width undercarriage |
| Operating Weight | 1,795 kg |
| Digging Depth | 2,290 mm |
| Bucket Capacity | 0.04 m³ |
| Reach | 3,900 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | 990 mm to 1,240 mm |
| Height | NA |
| Track Width | NA |
| Tail Swing Radius | NA |
Typical Applications
- Basement and narrow-alley work
- Light industrial and workshop settings
- Municipal, gardening and greenhouse work
- Internal renovations and equipment installation
