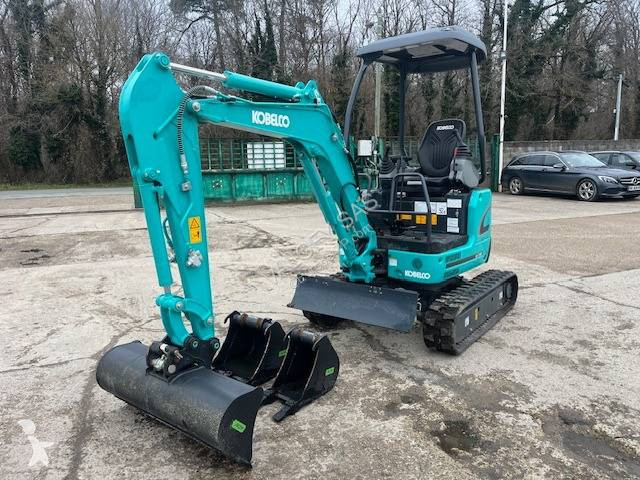

Kobelco SK17SR Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SK17SR |
| Weight | 1.8t |
Equipment Overview
The Kobelco SK17SR is a 1.79-tonne mini excavator built for sites where space is restricted, such as residential areas and industrial premises. A swing boom with side-ditch digging function and zero tailswing radius makes it easy to dig next to walls, and retractable crawlers narrow the machine to as little as 990 mm wide for access to tight urban and industrial sites. The compact upper body has no front overhang, and reinforced frame corners with thick cast iron protectors add durability for demanding, confined-space work.
Power comes from a diesel engine producing 11.3 kW (15.2 hp) SAE net, delivering top-class digging reach and digging depth for its size class. Boosted swing power and a top-class swing speed give shorter cycle times for greater efficiency, and a spring steel cylinder rod guard is standard on the bucket, boom and arm cylinders for extra protection. Like all Kobelco mini excavators, the SK17SR comes with a standard 4-year/4,000-hour full machine warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel |
| Power Output | 11.3 kW (15.2 hp) |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Rubber track, 230 mm shoes, retractable |
| Operating Weight | 1,790 kg |
| Digging Depth | 2,380 mm |
| Bucket Capacity | 0.044 m³ |
| Reach | 4,120 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,490 mm |
| Width | 990 mm (retracted) |
| Height | 2,350 mm |
| Track Width | 230 mm |
| Tail Swing Radius | NA |
Typical Applications
- Residential and confined-space excavation
- Utility work near walls and structures
- Light industrial and landscaping work
- Urban sites with restricted access
