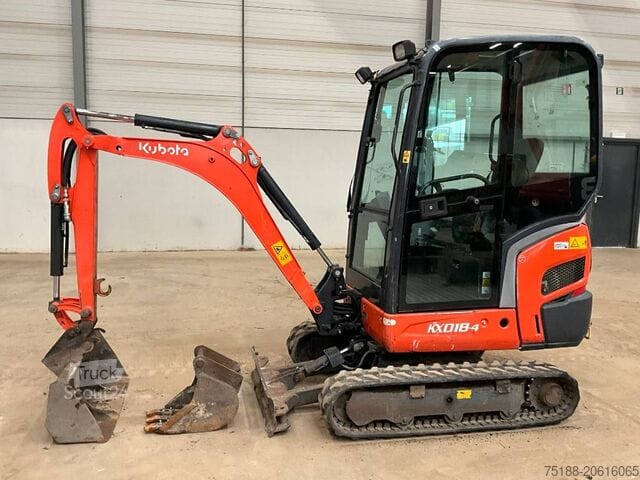

Kubota KX018 Mini Excavator

Information

Additional information

Make	Kubota
Model	KX018, KX018-4
Weight	1.7 t

Equipment Overview

The Kubota KX018 is a 1.8-tonne class mini excavator engineered to handle heavy loads in tight spaces, with a roomy operator’s area and features aimed at productivity and comfort. One of the largest cabins in its class offers ample legroom, adjustable seating and a wide door, bringing more comfort to tough work on roadsides, in residential locations and other restricted spaces. An adjustable track lets operators change the width for easy access through narrow spaces or a wider footprint for enhanced stability.

Power comes from a Kubota D902 engine producing 17 hp, Stage V compliant and engineered to maximise digging and lifting performance while minimising noise and vibration. A long 3,860 mm reach and a maximum digging depth of 2,380 mm let operators do more from wherever they’re working, and digging force reaches up to 15.9 kN. Kubota’s industry-leading, Thatcham-approved anti-theft system is standard, and a user-friendly digital panel gives one-touch access to time, hour meter and tachometer readouts.

Technical Specifications

Specification	Value
Engine	Kubota D902
Power Output	17 hp
Max Torque	NA
Emission Standard	EU Stage V
Transmission	Hydrostatic
Drive Type	Rubber track, 230 mm shoes, adjustable width
Operating Weight	1,695 kg to 1,795 kg
Digging Depth	2,380 mm
Bucket Capacity	0.04 m³
Reach	3,860 mm
