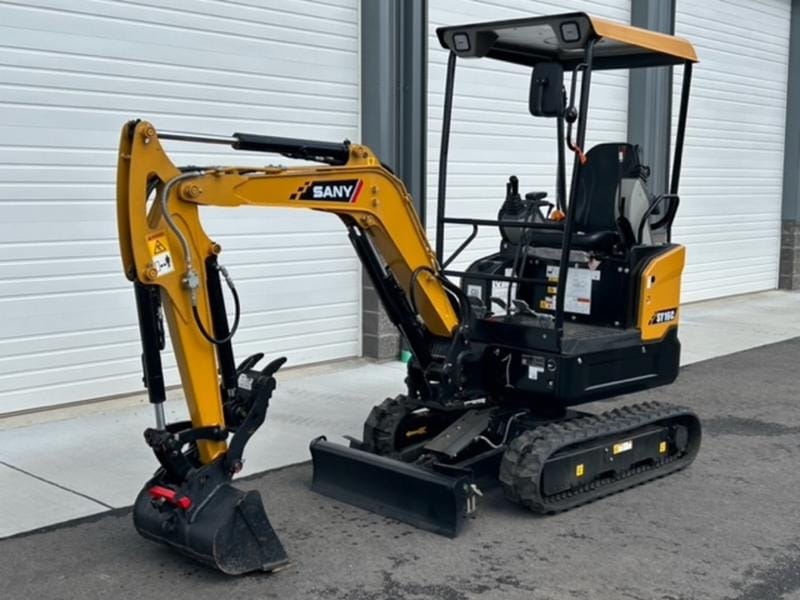

SANY SY16C Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SY16C |
| Weight | 1.8 t |
Equipment Overview
The SANY SY16C is a 1.825-tonne mini excavator, the smallest in SANY’s fleet and a champion of confined spaces, offering excellent value for general construction, landscaping and utility contractors. Reduced tail swing, a retractable undercarriage expanding from 980 to 1,350 mm and dozer blade extensions make it ideal for moving through narrow doorways, fences and other passageways. The open canopy gives the operator 360-degree visibility along with efficient ingress and egress, and 100% steel bodywork adds durability and reduces cost of ownership.
Power comes from a Yanmar 3TNV80F engine producing 14.6 kW at 2,400 rpm, meeting EU Stage V emissions standards. An independently developed intelligent control system matches pump output to available engine power for greater hydraulic efficiency and lower fuel consumption, and bucket breakout force reaches 16.6 kN. The primary auxiliary circuit supports a range of powered attachments, and the SY16C is backed by SANY’s standard 5-year/5,000-hour warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar 3TNV80F |
| Power Output | 14.6 kW @ 2,400 rpm |
| Max Torque | NA |
| Emission Standard | EU Stage V |
| Transmission | Hydrostatic, load-sensing hydraulics |
| Drive Type | Rubber track, 230 mm shoes, expanding undercarriage |
| Operating Weight | 1,825 kg |
| Digging Depth | 2,360 mm |
| Bucket Capacity | 0.04 m³ |
| Reach | 4,000 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,640 mm |
| Width | 980 mm to 1,350 mm |
| Height | 2,420 mm |
| Track Width | 230 mm |
| Tail Swing Radius | NA |
Typical Applications
- Narrow urban and indoor job sites
- Landscaping and utility work
- Forestry and confined-space excavation
- General residential construction
