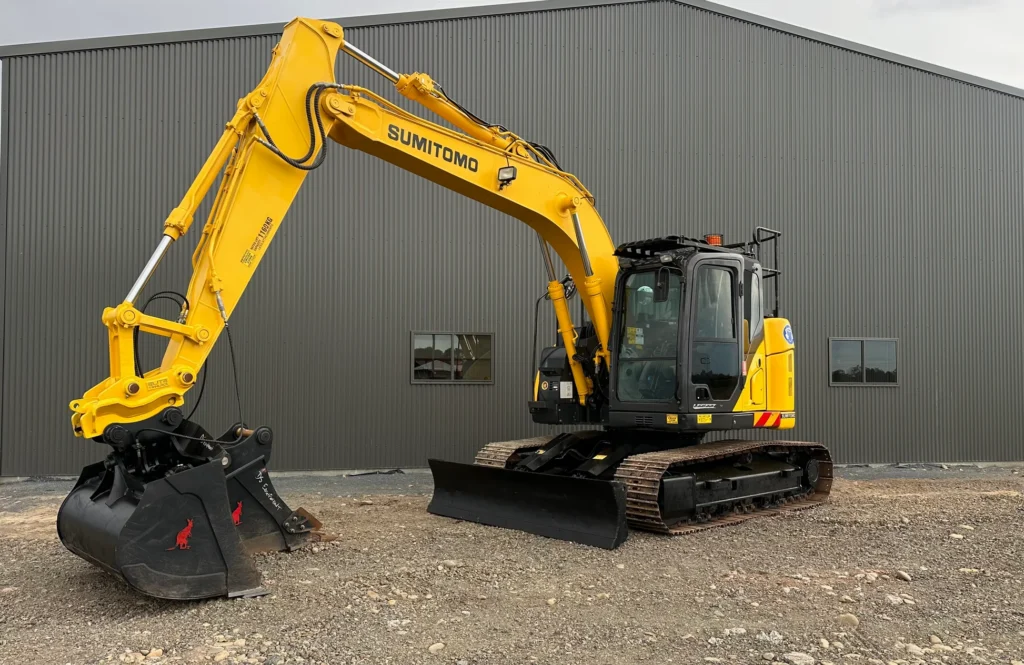

Sumitomo SH145X Small Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SH145X, SH145X-6 |
| Weight | 15t |
Equipment Overview
The Sumitomo SH145X is a 14.5-tonne minimum swing radius excavator, built with a compact counterweight and boom placement that keeps the machine’s work envelope tight for civil construction and mining sites. It’s mine-spec rated and comes standard with trenching, general purpose and batter buckets, suited to a wide range of site work from utility trenching to general excavation. A reinforced safety cabin is designed to keep cabin deformation to a minimum in the event of a rollover.
Power comes from an Isuzu diesel producing 70.9 kW (96 hp), paired with Sumitomo’s SIH:S+ hydraulic system for a 16% fuel saving over the previous DASH 3B generation. Bucket digging force is 90 kN, and travel speed runs to 5.6 km/h on high. The engine and hydraulics are tuned together to reduce environmental impact and running costs while keeping the digging performance expected of a conventional 14.5-tonne machine.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Isuzu diesel |
| Power Output | 70.9 kW (96 hp) |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Interim / EU Stage IIIB |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 500 mm shoes |
| Operating Weight | 14,500 kg |
| Digging Depth | 5,510 mm |
| Bucket Capacity | 0.50 m³ |
| Reach | 8,290 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length (transport) | 7,310 mm |
| Width (transport) | 2,590 mm |
| Height (transport) | 2,800 mm |
| Track Width | 500 mm |
| Tail Swing Radius | NA |
Typical Applications
- Civil construction and mine site work
- General excavation and trenching
- Utility installation near structures
- Attachment work with rippers and breakers
