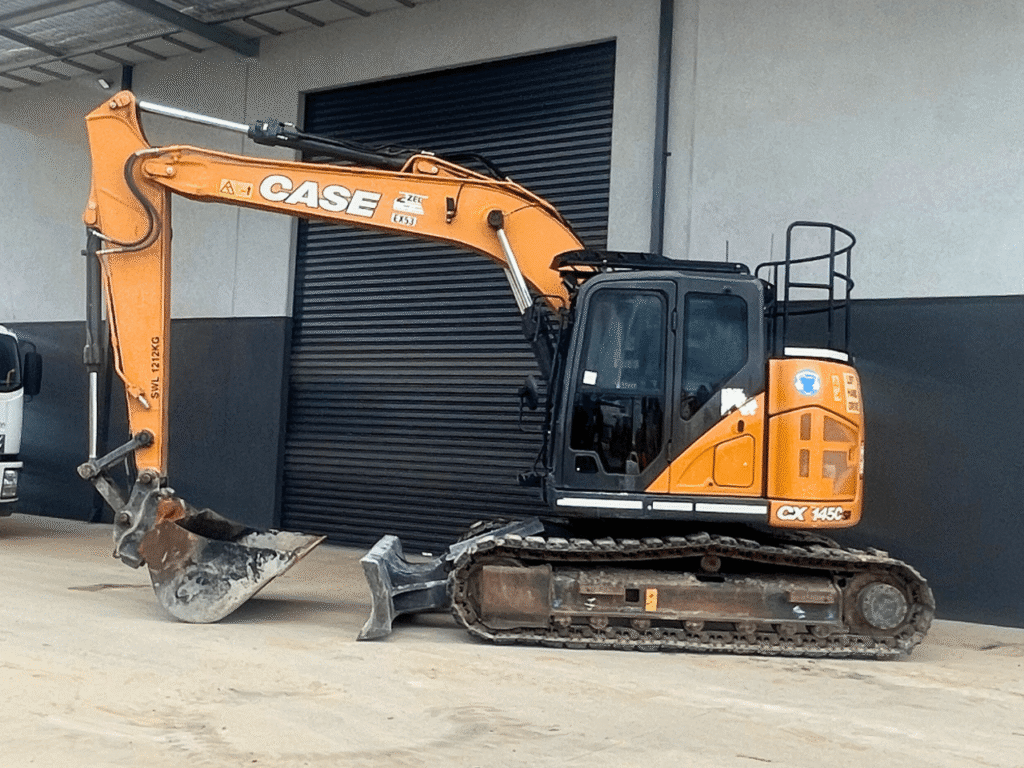

CASE CX145C Small Excavator
Information
Additional information
| Make | |
|---|---|
| Model | CX145C, CX145C SR |
| Weight | 15 t |
Equipment Overview
The CASE CX145C is a 14.5-tonne short radius excavator, built with a compact counterweight and boom placement that keeps the rear of the machine inside the track width. That makes it suited to road construction, bridge work and urban sites where a conventional-swing excavator would risk clipping traffic, kerbs or nearby structures. It comes standard with a dozer blade for levelling, spreading and backfilling, and CASE’s Intelligent Hydraulic System manages the engine and hydraulics to keep fuel use down without giving up digging performance.
Power comes from an Isuzu AM-4JJ1X diesel producing 74.9 kW (100.4 hp) at 2,000 rpm, meeting EPA Tier 4 Interim emissions standards without needing AdBlue. A simple operating mode dial gives three working modes, with Super Power set for maximum horsepower and hydraulic output, and an 8-second Powerboost function for extra digging force when needed. Drive is through steel triple grouser tracks, and a synthetic hydraulic filter stretches oil change intervals out to 5,000 hours.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Isuzu AM-4JJ1X diesel, 3.0 L |
| Power Output | 74.9 kW (100.4 hp) @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Interim |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel triple grouser track, 500 mm shoes |
| Operating Weight | 14,500 kg |
| Digging Depth | 5,510 mm |
| Bucket Capacity | 0.50 m³ (standard arm) |
| Reach | 8,140 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length (transport) | 7,880 mm |
| Width | 2,490 mm |
| Height (to top of ROPS) | 2,900 mm |
| Undercarriage Length | 3,500 mm |
| Tail Swing Radius | 1,490 mm |
Typical Applications
- Road, bridge and kerbside construction
- Urban and confined-site civil works
- General excavation and trenching
- Attachment work with augers, breakers and grabs
