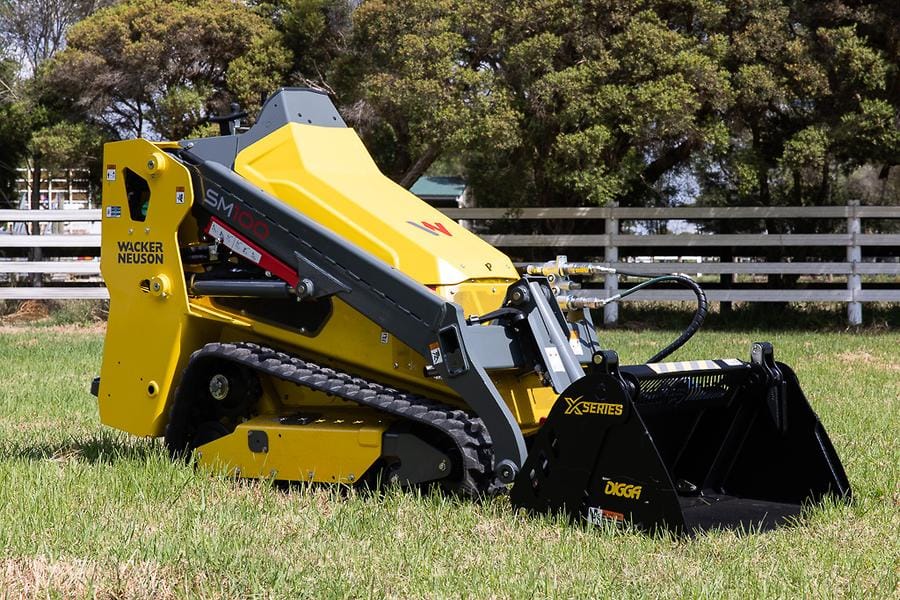

Wacker Neuson SM100 Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | SM100 |
| Weight | 1.5 t |
| Capacity | 0.6 t |
Equipment Overview
The Wacker Neuson SM100 is a compact track loader built for landscaping and utility work, positioned above the SM50 and SM60 in Wacker Neuson’s mini loader range. It delivers 24.8 hp (18.5 kW) from a Yanmar diesel engine and a 1,295 kg tipping load, suited to trenching, material handling, and attachment-driven work in tight, turf-sensitive spaces.
Power comes from a Yanmar 3TNV80FT three-cylinder diesel engine driving a 49 L/min auxiliary hydraulic circuit at 210 bar. Wide tracks keep ground pressure low to reduce turf disturbance, a front-mounted cooler keeps hot air off the operator’s legs, and a spring-suspended platform with forward-angled joysticks is built for all-day operator comfort.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar 3TNV80FT, 3-cylinder diesel, 1,266 cm³ |
| Power Output | 18.5 kW (24.8 hp) max; 18.4 kW (24.7 hp) operating |
| Max Torque | 85 N·m |
| Emission Standard | NA |
| Drive Type | Track drive, hydrostatic |
| Operating Weight | 1,497 kg |
| Rated Operating Capacity | 647 kg (at 50% of 1,295 kg tip load) |
| Hydraulic Flow (Auxiliary) | 49 L/min @ 210 bar |
| Max Travel Speed | 8.4 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,742 mm (with bucket) |
| Width | 902 mm |
| Height | 1,478 mm |
| Wheelbase | 1,093 mm (track length on ground) |
| Turning Radius | NA |
Typical Applications
- Turf-sensitive landscaping and lawn renovation
- Utility trenching and material handling
- Residential and commercial site access through gates and doorways
- Attachment-driven landscaping work
