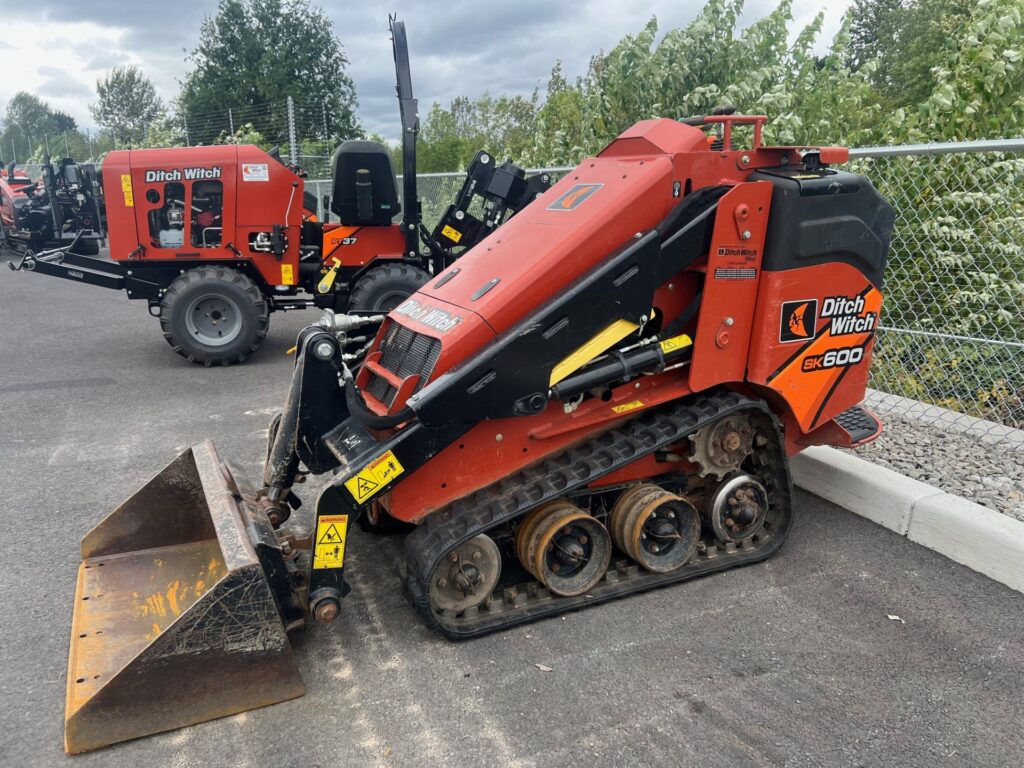

Ditch Witch SK600 Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | SK600 |
| Weight | 1.1t |
| Capacity | 0.25t |
Equipment Overview
The Ditch Witch SK600 is a stand-on mini skid steer built for landscaping and irrigation work, the entry point in Ditch Witch’s mini skid steer range alongside the SK900, SK1050, and SK1550. It delivers 24.8 hp (18.5 kW) from a Kubota diesel engine and a 272 kg rated operating capacity, suited to small-scale landscape, irrigation, and site clean-up work.
Power comes from a Kubota D902-E4B diesel engine meeting EPA Tier 4 and EU Stage IIIA emission standards, driving dual hydrostatic ground-drive pumps and a separate auxiliary circuit rated at 45.4 L/min. A narrow 850 mm track frame and a two-way auxiliary control foot pedal keep the operator’s hands free for depth and ground-speed control in tight, compact spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D902-E4B, 3-cylinder diesel |
| Power Output | 24.8 hp (18.5 kW) gross @ 3,600 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 4; EU Stage IIIA |
| Drive Type | Track drive, dual hydrostatic pumps |
| Operating Weight | 1,096 kg (no attachment, full fluids) |
| Rated Operating Capacity | 272 kg (35% of 782 kg tipping capacity) |
| Hydraulic Flow (Auxiliary) | 45.4 L/min @ 207 bar |
| Max Travel Speed | 6.6 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,680 mm (standard bucket) |
| Width | 850 mm |
| Height | 1,390 mm |
| Wheelbase | 925 mm (track length) |
| Turning Radius | NA |
Typical Applications
- Small-scale landscaping and garden installation
- Residential irrigation and pool-site access
- Site clean-up in tight backyard spaces
- Hire fleet work requiring easy transport
