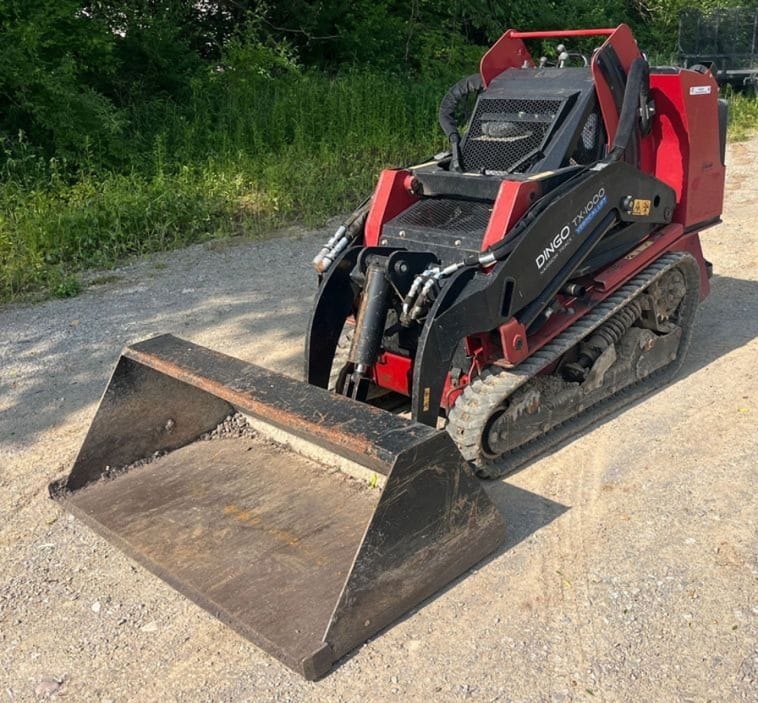

Toro TX1000 Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | TX1000 |
| Weight | 1.3 t |
| Capacity | 0.5 t |
Equipment Overview
The Toro Dingo TX1000 is a compact track loader built for landscaping and construction work, the vertical-lift flagship of Toro’s Dingo track loader range. It delivers 24.7 hp from a turbocharged Yanmar diesel engine and a 1,000 lb (454 kg) rated operating capacity, suited to jobs needing extra reach and lift over the side of dumpsters and one-ton trucks.
Power comes from a Yanmar 3TNV80FT turbo diesel engine meeting Tier 4 and EU Stage 5 emission standards, with Toro’s Smart Power feature automatically balancing engine, auxiliary, and traction torque. Vertical-lift loader arms keep the load closer to the machine for greater lift confidence, and an 81-inch hinge pin height lets the TX1000 clear the side of a 30-yard dumpster.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar 3TNV80FT, turbo diesel |
| Power Output | 24.7 hp (18.4 kW) |
| Max Torque | NA |
| Emission Standard | Tier 4; EU Stage 5 |
| Drive Type | Dual hydrostatic pump, track drive |
| Operating Weight | 1,320 kg |
| Rated Operating Capacity | 454 kg |
| Hydraulic Flow (Auxiliary) | 50 L/min high flow |
| Max Travel Speed | 6.6 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,642 mm (with bucket) |
| Width | 1,013 mm |
| Height | 1,384 mm |
| Wheelbase | 990 mm |
| Turning Radius | NA |
Typical Applications
- Loading materials into dumpsters and one-ton trucks
- Auguring and concrete breaking
- Landscaping and site material handling
- Attachment-driven construction and demolition work
