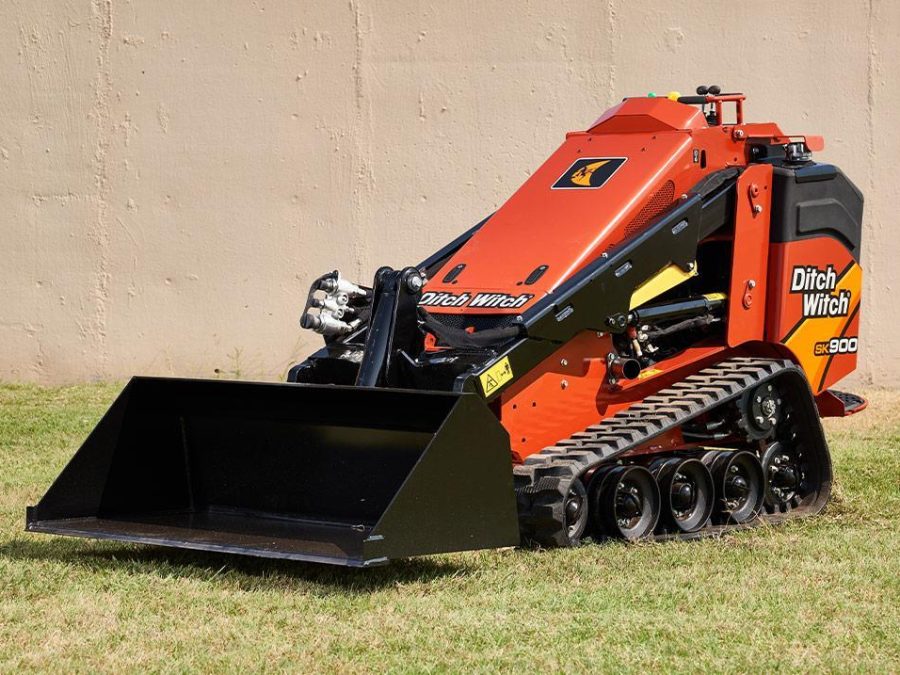

Ditch Witch SK900 Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | SK900 |
| Weight | 1.4 t |
| Capacity | 0.4 t |
Equipment Overview
The Ditch Witch SK900 is a stand-on mini skid steer built for landscaping and construction-grade work, part of Ditch Witch’s mini skid steer range alongside the SK600, SK1050, and SK1550. It delivers 24.8 hp (18.5 kW) from a Yanmar diesel engine and a 422 kg rated operating capacity, suited to landscaping, tree care, and construction jobs needing more muscle than the SK600.
Power comes from a Yanmar 3TNV80FT diesel engine meeting EPA Tier 4 Final and EU Stage V emission standards, driving a dual gear-pump auxiliary circuit rated at 45.3 L/min combined. A manual throttle lever carried over from the larger SK1550 gives the operator finer control of ground speed, and a lower drive speed than the SK600 directs more power to the attachment.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar 3TNV80FT, 3-cylinder turbo diesel |
| Power Output | 24.8 hp (18.5 kW) gross @ 2,600 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final; EU Stage V |
| Drive Type | Track drive, dual hydrostatic pumps |
| Operating Weight | 1,447 kg (no attachment, full fluids) |
| Rated Operating Capacity | 422 kg (35% of 1,182–1,208 kg tipping capacity) |
| Hydraulic Flow (Auxiliary) | 45.3 L/min combined @ 207 bar |
| Max Travel Speed | 6.4 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,670 mm (standard bucket) |
| Width | NA |
| Height | 1,450 mm |
| Wheelbase | 1,090 mm (track length) |
| Turning Radius | NA |
Typical Applications
- Landscaping and tree care material handling
- Construction-grade site work needing more power
- Attachment-driven digging and grading
- Hire fleet and contractor work
