Vermeer S925TX Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | S925TX |
| Weight | 1.6t |
| Capacity | 0.4t |
Equipment Overview

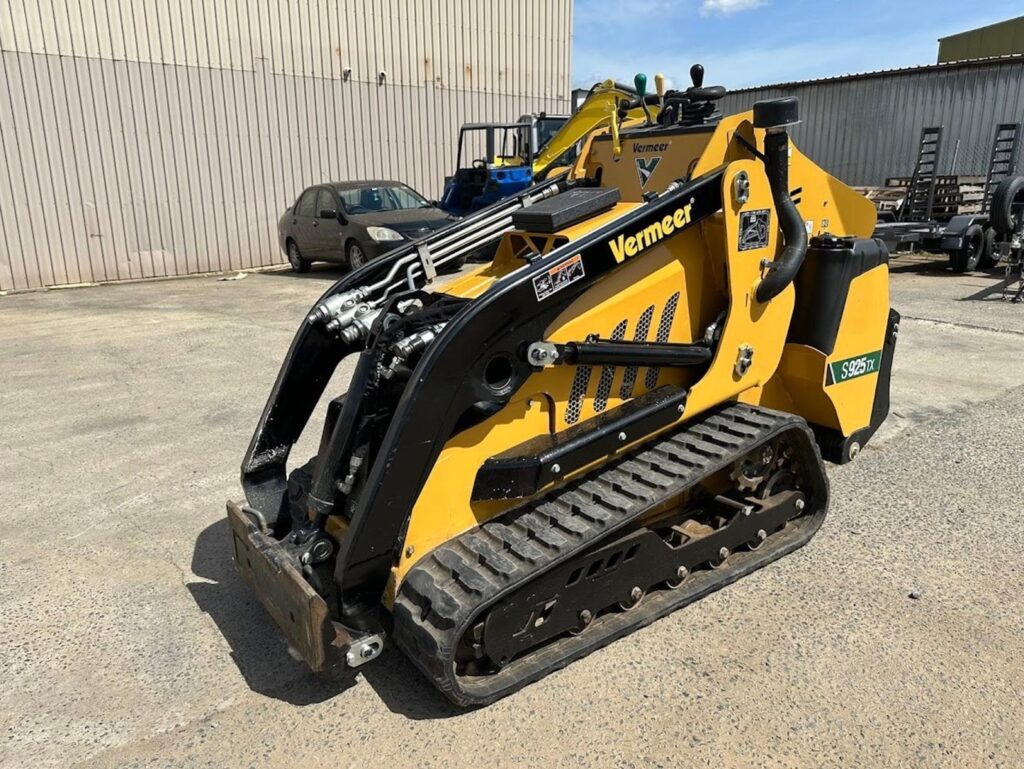

The Vermeer S925TX is a stand-on mini track loader built for landscaping and construction work, positioned between the S450TX and CTX100 in Vermeer’s compact utility loader lineup. It delivers 25 hp (18.6 kW) from a Kubota V1505 diesel engine and a 925 lb (420 kg) rated operating capacity, suited to demanding attachments and heavier lifting than Vermeer’s smaller mini skid steers.
Power comes from a Kubota V1505 diesel engine meeting Stage V emission standards, delivering 93.6 N·m of torque through a dual auxiliary hydraulic circuit rated at up to 12 gpm (45.4 L/min). A radial-lift boom path and a chariot-style operating platform are built for comfort and productivity, and a universal mounting plate accepts a broad range of Vermeer-approved attachments, with a choice of 7-inch or 9-inch tracks to trade access for lower ground pressure.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota V1505, diesel |
| Power Output | 25 hp (18.6 kW) gross |
| Max Torque | 93.6 N·m |
| Emission Standard | Stage V |
| Drive Type | Track drive, stand-on |
| Operating Weight | 1,630 kg (standard bucket, 9-in tracks) |
| Rated Operating Capacity | 420 kg (SAE) |
| Hydraulic Flow (Auxiliary) | 45.4 L/min |
| Max Travel Speed | 7.3 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,692 mm (with standard bucket) |
| Width | 1,067 mm (with standard bucket) |
| Height | 1,473 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Heavier lifting and material handling on construction sites
- Landscaping requiring demanding attachments
- Rental fleet and contractor work needing extra capacity
- Site work in tight-access areas with a choice of track widths
