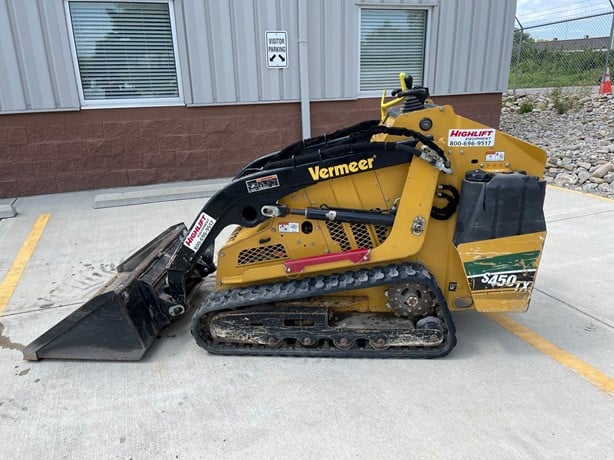

Vermeer S450TX Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | S450TX |
| Weight | 1t |
| Capacity | 0.25t |
Equipment Overview
The Vermeer S450TX is a stand-on mini track loader built for landscaping and rental work, positioned below the CTX100 in Vermeer’s compact utility loader lineup. It delivers 24.8 hp (18.2 kW) from a Kubota diesel engine and a 500 lb (227 kg) ISO-rated operating capacity, suited to residential landscaping jobs needing a compact footprint and a 6-foot dump height.
Power comes from a Kubota D902 diesel engine meeting Stage V emission standards, delivering 55.9 N·m of torque through a dual auxiliary hydraulic circuit rated at up to 12.5 gpm (47.3 L/min). Interchangeable 7-inch narrow and 9-inch wide tracks let operators trade gate access for lower ground pressure, and a single pilot-operated joystick handles steering, lift, and curl.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D902, 3-cylinder diesel, 0.9 L |
| Power Output | 24.8 hp (18.2 kW) gross |
| Max Torque | 55.9 N·m |
| Emission Standard | Stage V |
| Drive Type | Track drive, stand-on |
| Operating Weight | 1,045 kg |
| Rated Operating Capacity | 227 kg (ISO) |
| Hydraulic Flow (Auxiliary) | 47.3 L/min @ 203.4 bar |
| Max Travel Speed | 5.6 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 1,915 mm |
| Width | 909 mm |
| Height | 1,356 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Residential landscaping through standard gates
- Rental fleet work needing a compact footprint
- Material handling and site clean-up
- Attachment-driven landscaping and construction work
