EquipmentWacker Neuson SM325-24W Mini Loader
Model
SM325-24W

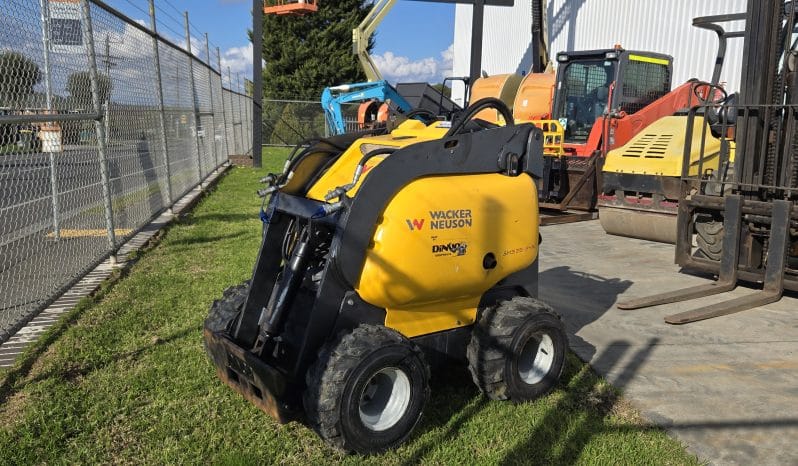

Wacker Neuson SM325 Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | SM325, SM325-24W |
| Weight | 1 t |
| Capacity | 0.3 t |
Equipment Overview
The Wacker Neuson SM325 is a stand-on mini loader built for landscaping, utility, and general earthmoving work, designed and manufactured for Wacker Neuson by Dingo Australia. It delivers 27 hp from a Yanmar 3TNV76 diesel engine and a 325 kg rated lift capacity, suited to heavier industrial attachments and trenching work on Australian sites.
Power comes from a Yanmar 3TNV76 diesel engine driving a two-pump hydraulic system rated at 47 L/min and 222 bar, with all-wheel drive through four hydraulic drive motors built into the drive unit to reduce wear. An optional narrow wheel and hub set narrows the machine to 780 mm for tight-access work, and a large hydraulic oil reservoir supports longer duty cycles.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar 3TNV76, diesel |
| Power Output | 27 hp (26.8 hydraulic hp) |
| Max Torque | NA |
| Emission Standard | NA |
| Drive Type | All-wheel drive, 4 hydraulic drive motors |
| Operating Weight | 984 kg |
| Rated Operating Capacity | 325 kg WLL |
| Hydraulic Flow (Auxiliary) | 47 L/min @ 222 bar |
| Max Travel Speed | 7.5 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 1,600 mm |
| Width | 850–1,050 mm |
| Height | 1,200 mm |
| Wheelbase | 800 mm |
| Turning Radius | NA |
Typical Applications
- Heavier industrial attachment work
- Utility trenching and drainage installation
- Residential and commercial landscaping
- Mine site and rural fence post drilling
