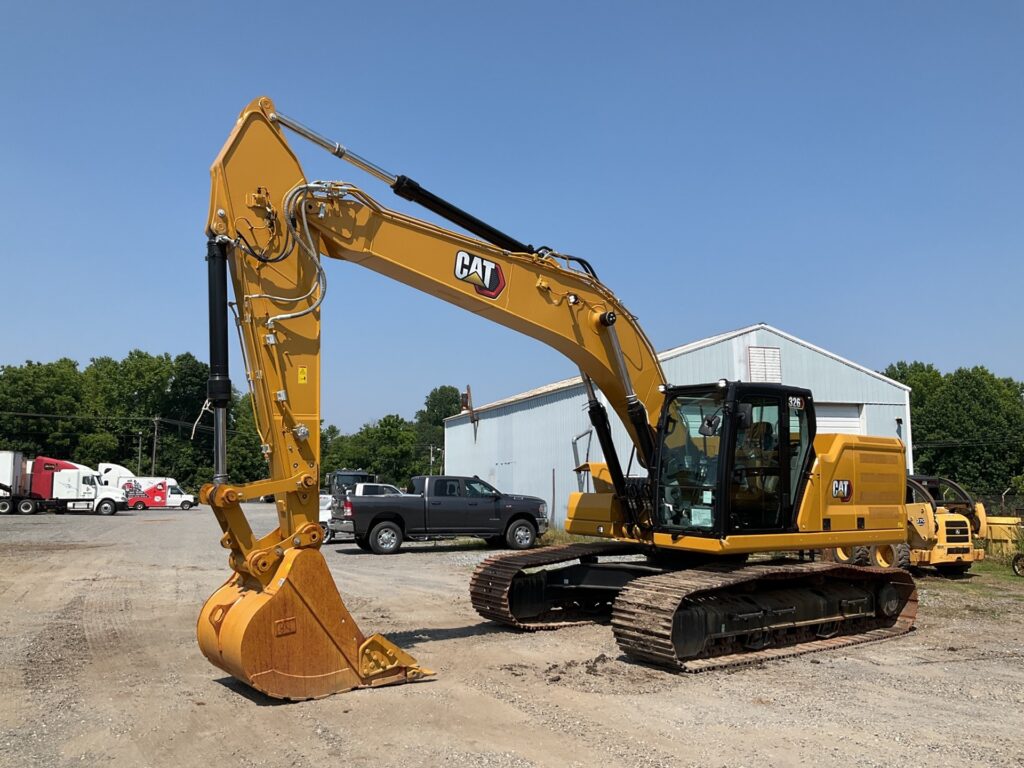

CAT 326 Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | 326 |
| Weight | 26 t |
Equipment Overview
The Cat 326 is a 25.8-tonne excavator developed for contractors who need reliable performance across a wide range of applications, from general construction to heavy-duty earthworks. Standard technologies including Cat Grade with 2D, Cat Payload and E-Fence help operators dig with precision, load faster and work more safely, while Auto Dig Boost increases power by up to 8% for better bucket penetration and shorter cycle times. The machine emits lower CO2 than the previous 326F it replaces.
Power comes from a Cat C7.1 engine producing 151 kW gross (150 kW net), meeting EPA Tier 4 Final, EU Stage V and Japan 2014 emissions standards. Three selectable power modes and one-touch low idle with automatic engine speed control help balance performance against fuel use, and an integrated vehicle health management system gives step-by-step service guidance to reduce unnecessary downtime. Bucket digging force reaches 166 kN.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C7.1, 7.01 L |
| Power Output | 151 kW gross / 150 kW net |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final / EU Stage V / Japan 2014 |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 25,800 kg |
| Digging Depth | 6,820 mm |
| Bucket Capacity | 1.54 m³ |
| Reach | 10,120 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 10,060 mm |
| Width | 3,190 mm |
| Height | 3,000 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- General construction and civil earthworks
- Deep trenching and foundation work
- Quarry and mass excavation
- Truck loading and material handling
