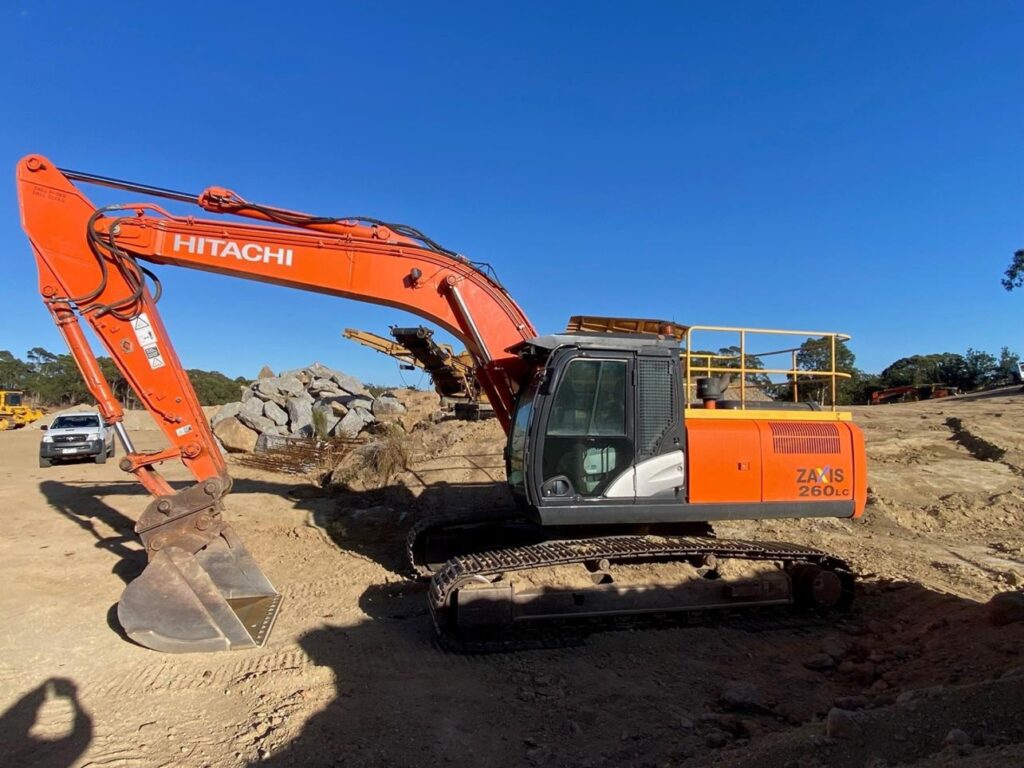

Hitachi ZX260LC Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | ZX260LC, ZX260LC-5, ZX260LC-6 |
| Weight | 27 t |
Equipment Overview
The Hitachi ZX260LC is a 26.7 to 27.3-tonne excavator from Hitachi’s Zaxis-7 medium excavator range, built around improving the operator’s experience in the cab as much as the machine’s raw performance. Hitachi focused the design on supporting owners through the full life cycle of the machine, from workspace comfort to fleet management support, giving contractors more control over both day-to-day operation and long-term running costs.
Power comes from a diesel engine producing 140 kW gross (132 kW net), with a bucket capacity range of 0.80 to 1.40 m³ ISO heaped covering general excavation through to higher-volume loading work. The Zaxis-7 range carries forward Hitachi’s focus on hydraulic responsiveness and fuel efficiency, giving the ZX260LC strong digging and lifting performance for its weight class.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel |
| Power Output | 140 kW gross / 132 kW net |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track |
| Operating Weight | 26,700 kg to 27,300 kg |
| Digging Depth | NA |
| Bucket Capacity | 0.80 m³ to 1.40 m³ |
| Reach | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Track Width | NA |
| Tail Swing Radius | NA |
Typical Applications
- General construction and civil earthworks
- Quarry and mass excavation
- Truck loading and material handling
- Deep trenching and foundation work
