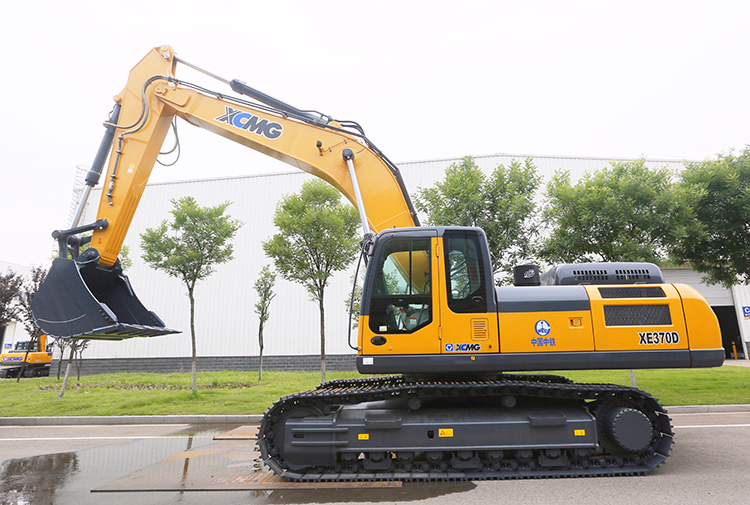

XCMG XE370D Large Excavator
Information
Additional information
| Make | |
|---|---|
| Model | XE370D |
| Weight | 37 t |
Equipment Overview
The XCMG XE370D is a 36.8-tonne excavator built for earthwork engineering, mining and tunnel work in harsh construction environments. A more balanced overall layout and axle load distribution improve travel stability, with a maximum travel speed up to 40 km/h for faster site-to-site transfers. The advanced digging-end structure and hinge points, combined with the industry’s largest bucket rotation angle in its class, give strong soil-holding capacity, and the highest breakout force on the loading end leads comparable models by 15-20%.
Power comes from an imported Isuzu engine, meeting international emissions and noise standards with low oil consumption. An advanced negative flow control system through double pump confluence increases flow distribution from the multi-valve to each action cylinder, improving digging capacity and work efficiency. New high-strength steel buckets use a flat-bottom strengthened design with patented tooth, side tooth and tooth holder technology for extended service life and wear resistance.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Isuzu diesel |
| Power Output | NA |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track |
| Operating Weight | 36,800 kg |
| Digging Depth | 7,423 mm |
| Bucket Capacity | 1.7 m³ to 1.8 m³ |
| Reach | 10,480 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | 10,445 mm |
| Track Width | NA |
| Tail Swing Radius | NA |
Typical Applications
- Earthwork engineering and mining
- Tunnel and harsh-environment construction
- Mass excavation and material handling
- Truck loading and site development
