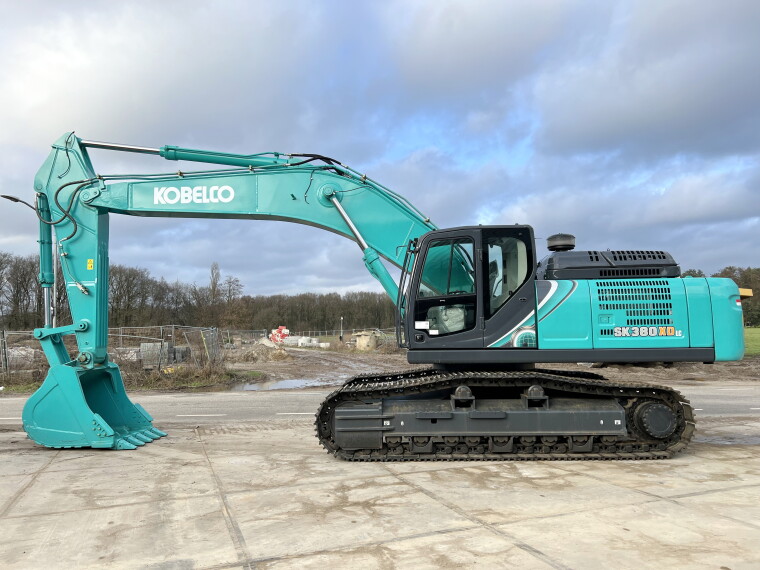

Kobelco SK380 Large Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SK380, SK380XDLC |
| Weight | 38 t |
Similar Equipment
Equipment Overview
The Kobelco SK380 is a 37.7-tonne excavator, the heaviest machine in its class, built to bring Kobelco’s engineering and legendary Japanese reliability to the most demanding worksites. Best-in-class tractive force of 331 kN sets the benchmark for the class, and powerful slew torque of 120 kN keeps cycle times fast even when swinging heavy loads. Kobelco’s GEOSCAN telematics system is included free for five years, giving remote access to a comprehensive set of operational and maintenance data from any web-enabled device.
Power comes from a diesel engine producing 200 kW at 2,100 rpm, with bucket breakout force reaching 244 kN for fast digging cycle times in tough material. Bucket capacity ranges from 0.84 to 1.6 m³, and the machine carries Kobelco’s Extended Major Component Warranty of 4 years or 6,000 hours, giving owners added confidence over the machine’s working life.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel |
| Power Output | 200 kW @ 2,100 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 37,700 kg |
| Digging Depth | 7,600 mm |
| Bucket Capacity | 0.84 m³ to 1.6 m³ |
| Reach | 11,200 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 11,300 mm |
| Width | 3,260 mm |
| Height | 3,690 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- Mass excavation and heavy construction
- Quarry and infrastructure projects
- Truck loading and material handling
- Deep trenching and foundation work
