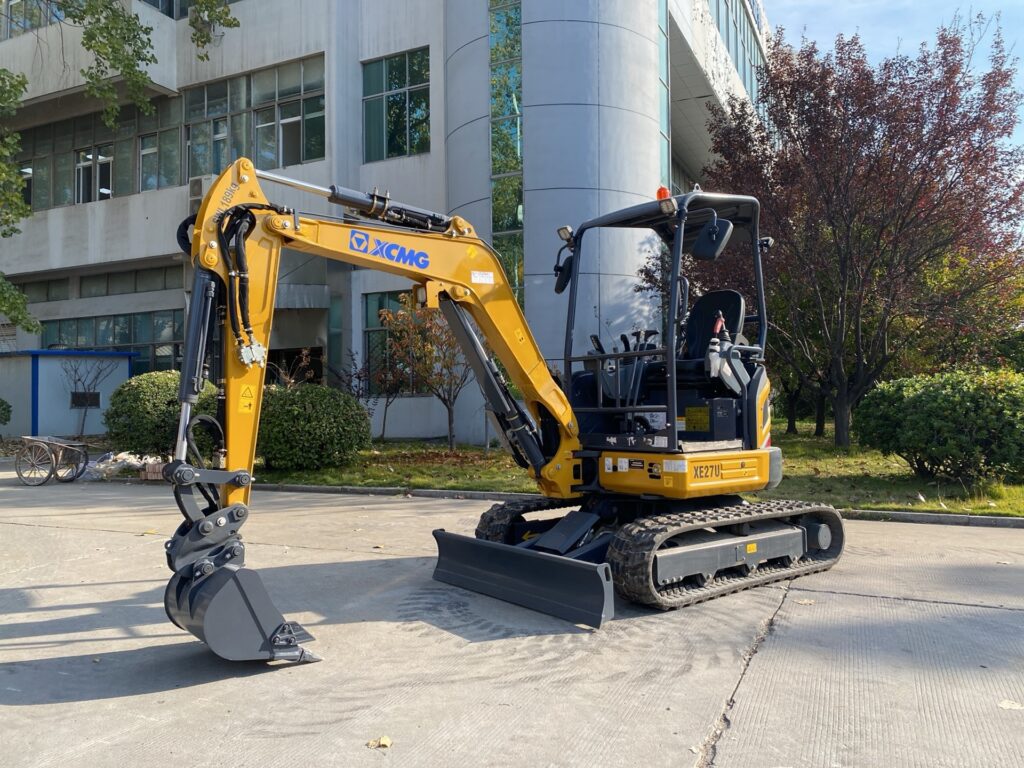

XCMG XE27U Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | XE27U |
| Weight | 2.7 t |
Equipment Overview
The XCMG XE27U is a 2.68 to 2.78-tonne mini excavator ideal for construction, landscaping and utility projects in tight spaces. An X-type undercarriage gives a robust structure designed to withstand extensive use, with high-torque axial piston motors and planetary reduction gears driving the tracks, and lifetime-lubricated track rollers and idlers reduce maintenance. Each track is driven independently, allowing smooth travel and counter-rotation for tight manoeuvring, and left and right boom swing angles give confidence during parallel wall digging or travelling in narrow spaces.
Power comes from a Kubota D1105 engine producing 15.4 kW (20.7 hp), meeting Tier 4 Final emissions standards, paired with a load-sensing hydraulic system for efficiency and fuel economy. Bucket digging force reaches 23 kN and arm digging force 14 kN. Integrated noise regulation technologies and an automatic slew brake system keep the work environment quieter and safer, and grouped service points within reach from the ground make maintenance easier and reduce potential downtime.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D1105 |
| Power Output | 15.4 kW (20.7 hp) |
| Max Torque | NA |
| Emission Standard | Tier 4 Final |
| Transmission | Hydrostatic, load-sensing hydraulics |
| Drive Type | Rubber track |
| Operating Weight | 2,680 kg to 2,780 kg |
| Digging Depth | 2,795 mm |
| Bucket Capacity | 0.06 m³ |
| Reach | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,190 mm |
| Width | 1,500 mm |
| Height | 2,580 mm |
| Track Width | NA |
| Tail Swing Radius | NA |
Typical Applications
- Demolition and landscaping
- Earthmoving and material handling
- Urban and confined-space construction
- Utility installation and trenching
