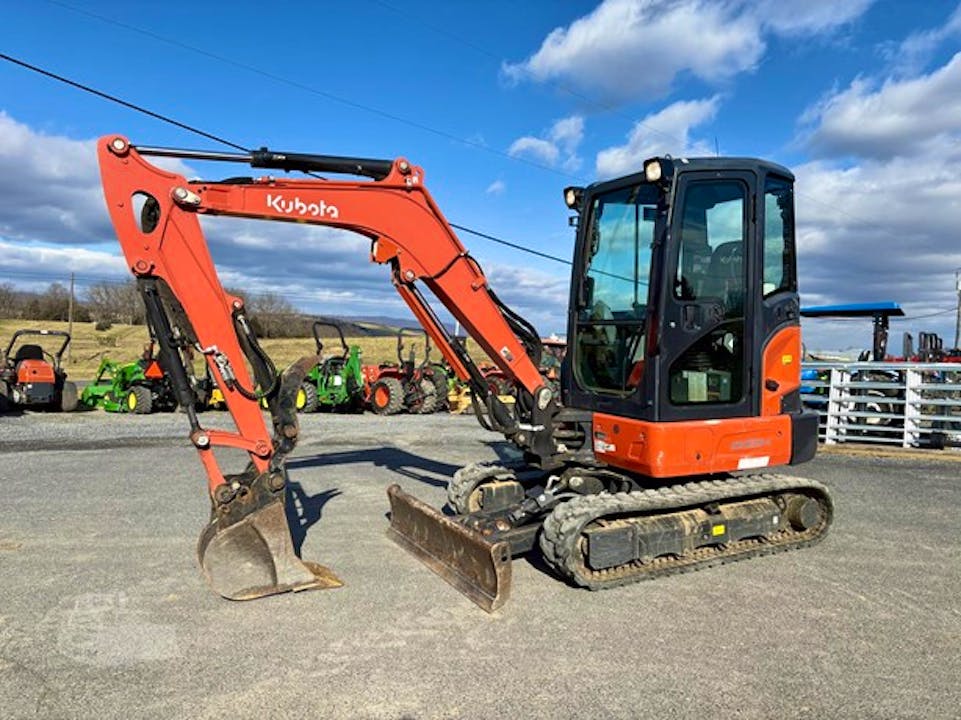

Kubota KX033 Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | KX033, KX033-4 |
| Weight | 3.4 t |
Equipment Overview
The Kubota KX033 is a 3.37-tonne mini excavator combining compact size with exceptional power, ideal for tight job sites that demand productivity without sacrificing digging force. Outstanding bucket breakout force lets operators handle even the toughest excavating work with speed and efficiency when heavily loaded, and the powerful, responsive front working group gives confidence to handle a wide range of digging, lifting and loading work. A much wider door and ample foot space make it easy to enter and exit the cab.
Power comes from a Kubota D1703-M-DI-E4 engine producing 27.5 hp (20.5 kW) at 2,000 rpm. A large-capacity variable displacement pump gives power-matched boom, arm and bucket movements, and Kubota’s unique hydraulic system delivers the precise control needed for smooth, efficient operation in confined quarters. The standard AUX1 hydraulic circuit, optional angle blade and upgraded control valve technology allow smoother, simultaneous operation of the boom, arm, bucket and swivel functions.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D1703-M-DI-E4 |
| Power Output | 27.5 hp (20.5 kW) @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, variable displacement pump |
| Drive Type | Rubber track, 300 mm shoes |
| Operating Weight | 3,370 kg |
| Digging Depth | 3,210 mm |
| Bucket Capacity | 0.10 m³ |
| Reach | 5,120 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,730 mm |
| Width | 1,550 mm |
| Height | 2,480 mm |
| Track Width | 300 mm |
| Tail Swing Radius | NA |
Typical Applications
- Residential and confined-space excavation
- Utility and trenching work
- Landscaping and property maintenance
- Foundation and drainage work
