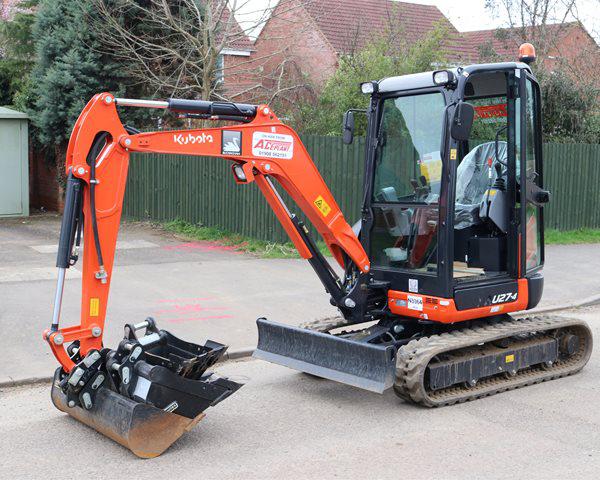

Kubota U27 Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | U27, U27-4 |
| Weight | 2.6 t |
Equipment Overview
The Kubota U27 is a 2.58-tonne mini excavator with the largest cab in its class, offering wide, low-access entry, expansive visibility and an ergonomically designed operator area. Zero tail swing delivers unrivalled core stability, smooth control and effortless operation in confined spaces without needing additional weights, making it ideal for urban projects or tight access areas. Two variable pumps enable simultaneous operation of the boom, arm, bucket and swivel for continuous, high-performance digging and dozing.
Power comes from a Kubota E-TVCS diesel engine producing 21.6 PS (15.9 kW), Stage V compliant and tuned to maximise power while minimising exhaust emissions, noise and vibration. Maximum reach is 4.68 m, maximum digging depth 2.87 m, and bucket digging force reaches up to 31 kN, enabling faster, highly efficient digging across a variety of site conditions. Built-in safety features include a swivel negative brake that automatically locks the swivel function, and the machine can be towed safely under the 3.5-tonne limit on a standard trailer.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota E-TVCS diesel |
| Power Output | 21.6 PS (15.9 kW) |
| Max Torque | NA |
| Emission Standard | EU Stage V |
| Transmission | Hydrostatic, 2 variable pumps |
| Drive Type | Rubber track, 300 mm shoes |
| Operating Weight | 2,580 kg |
| Digging Depth | 2,870 mm |
| Bucket Capacity | 0.066 m³ |
| Reach | 4,680 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,100 mm |
| Width | 1,500 mm |
| Height | 2,420 mm |
| Track Width | 300 mm |
| Tail Swing Radius | NA |
Typical Applications
- Urban and confined-space excavation
- Trenching and utility work
- Landscaping and general dozing
- Residential and light commercial work
