Kubota U25 Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | U25, U25-3, U25-3S, U25-4 |
| Weight | 2.6t |
Equipment Overview

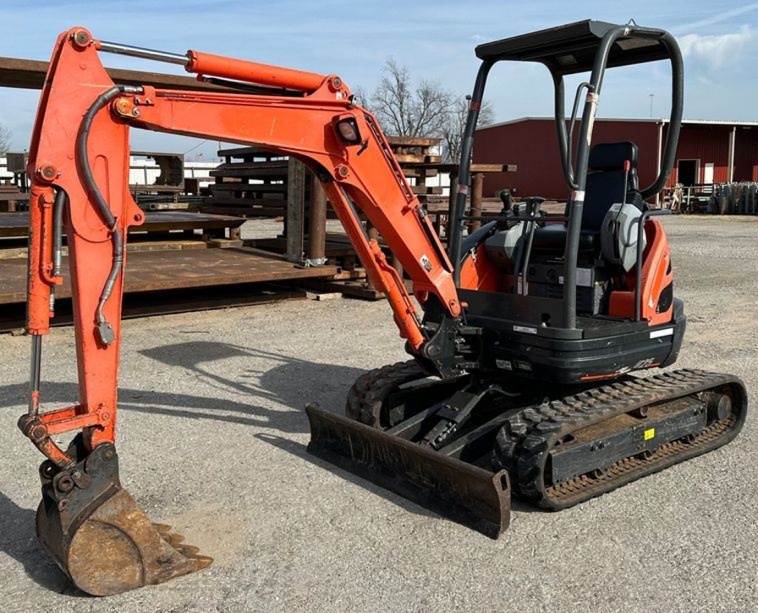

The Kubota U25 is a compact, ultra-manoeuvrable 2.55-tonne mini excavator featuring a true zero-tail-swing design, perfect for tight urban spaces and small-scale excavation work. Despite its size, the U25 offers strong digging force, exceptional reliability and simplified service access, making it a favourite among contractors, landscapers and rental fleets. An optional long arm gives extended reach for doing more work from a single position, and the machine remains exceptionally stable and well balanced even with this option fitted.
Power comes from a Kubota D1105 diesel engine producing 21 hp. Bucket digging force reaches around 22 kN, giving the machine short work even on tough digging jobs. It’s commonly used for trenching, grading, backfilling and material handling in urban and residential applications, and its compact transport size makes it easy to move between job sites.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D1105 |
| Power Output | 21 hp |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Rubber track, 300 mm shoes |
| Operating Weight | 2,550 kg |
| Digging Depth | NA |
| Bucket Capacity | 0.08 m³ |
| Reach | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,100 mm |
| Width | 1,500 mm |
| Height | 2,400 mm |
| Track Width | 300 mm |
| Tail Swing Radius | NA |
Typical Applications
- Urban and residential excavation
- Trenching, grading and backfilling
- Landscaping and drainage work
- Material handling in confined spaces
