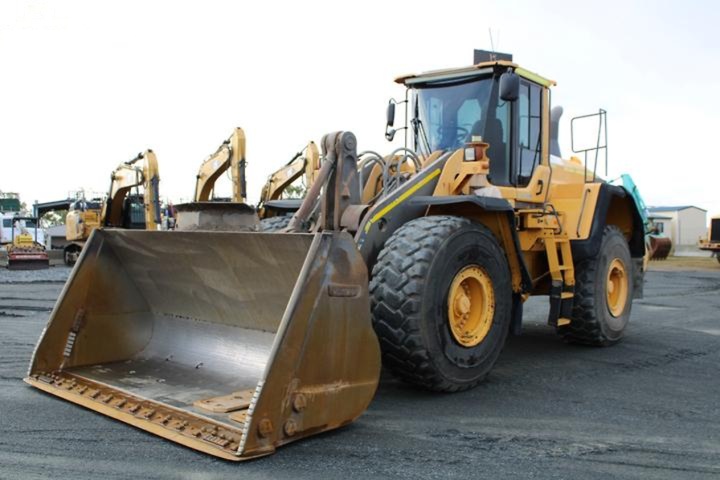

Volvo L180 TP Integrated Tool Carrier
Information
Additional information
| Make | |
|---|---|
| Model | L180 TP, L180F TP |
| Weight | 28 t |
| Configuration | Parallel Linkage |
Equipment Overview
The Volvo L180 is a wheel loader built as an integrated tool carrier from the ground up, current as the L180H. It delivers 245 kW (333 hp) and an 8,710 kg operating load, with Torque Parallel (TP) linkage fitted as standard across the entire range rather than as a separate variant, delivering high breakout force and excellent parallel movement throughout the entire lifting range.
Power comes from a Volvo D13F turbocharged diesel engine, delivering 2,024 N·m of net torque through a Volvo Automatic Power Shift (APS) transmission with fully automatic 1-4 gear shifting. Volvo’s OptiShift technology combines Reverse By Braking with a lock-up torque converter to cut fuel consumption by up to 18%, and the TP linkage’s open bucket design and strong rollback angles suit rehandling, extraction, block-handling, and recycling attachment work.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Volvo D13F, 6-cylinder turbo diesel, 12.8 L |
| Power Output | 245 kW (333 hp) @ 1,300–1,400 rpm |
| Max Torque | 2,024 N·m @ 1,000 rpm |
| Emission Standard | Stage II |
| Transmission | Volvo APS, 4-speed automatic powershift, single-stage torque converter with lock-up |
| Drive Type | 4WD, articulated frame, 100% front differential lock |
| Operating Weight | 28,470 kg |
| Operating Load | 8,710 kg |
| Static Tipping Load (straight, GP bucket) | 21,560 kg |
| Breakout Force | 24,062 kgf (236.0 kN) |
| Max Travel Speed | 38 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | 7,425 mm (from clearance circle) |
Typical Applications
- Rehandling and extraction work
- Block-handling and recycling
- Log handling
- Large-scale material handling
