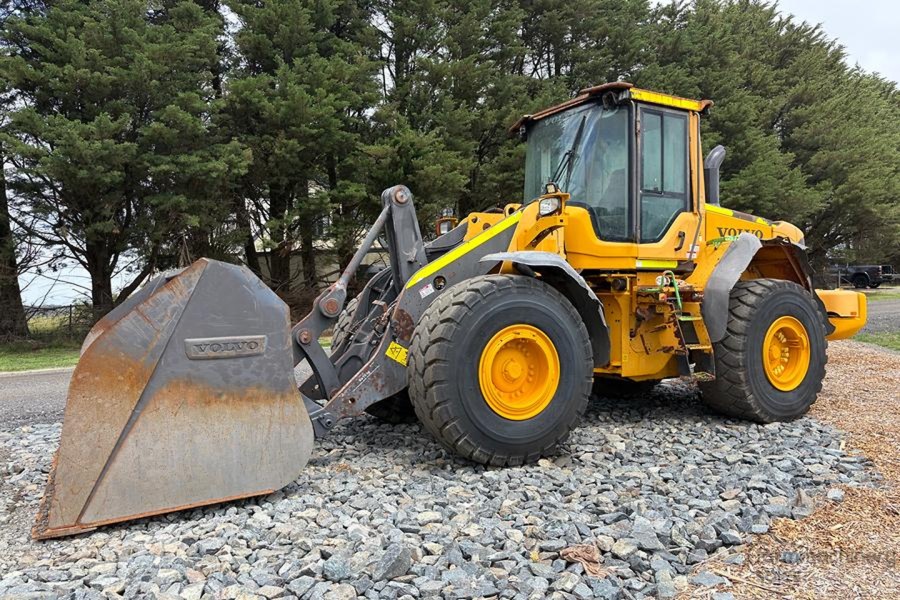

Volvo L120 TP Integrated Tool Carrier
Information
Additional information
| Make | |
|---|---|
| Model | L120 TP, L120F TP, L120H TP |
| Weight | 21 t |
| Configuration | Parallel Linkage |
Equipment Overview
The Volvo L120 is a wheel loader built as an integrated tool carrier from the ground up, current as the L120H. It delivers 203 kW (276 hp) and a 6,400 kg SAE-rated load, with Torque Parallel (TP) linkage fitted as standard across the entire range rather than as a separate variant, keeping attachments parallel throughout the lifting range for stability during loading and carrying.
Power comes from a Volvo D8J turbocharged diesel engine meeting EU Stage V emission standards, delivering 1,317 N·m of net torque through a Volvo Automatic Power Shift (APS) transmission with fully automatic 1-4 gear shifting and rimpull control. Reverse By Braking automatically reduces engine rpm and applies the service brakes on direction change, and the TP linkage’s open bucket design, strong rollback angles, and double-sealed lift arm pins make it well suited to fork, grapple, and material handling arm attachments.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Volvo D8J, 6-cylinder turbo diesel, 7.8 L |
| Power Output | 203 kW (276 hp) @ 1,500 rpm |
| Max Torque | 1,317 N·m @ 1,450 rpm |
| Emission Standard | EU Stage V |
| Transmission | Volvo APS, 4-speed automatic powershift, single-stage torque converter |
| Drive Type | 4WD, articulated frame, 100% front differential lock |
| Operating Weight | 20,713 kg |
| SAE-Rated Load | 6,400 kg |
| Static Tipping Load (straight, GP bucket) | 14,800 kg |
| Breakout Force | 19,287 kgf (189.2 kN) |
| Max Travel Speed | 40 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | 6,445 mm (from clearance circle) |
Typical Applications
- Pallet and material handling
- Log handling
- Waste and recycling handling
- Rehandling and general construction work
