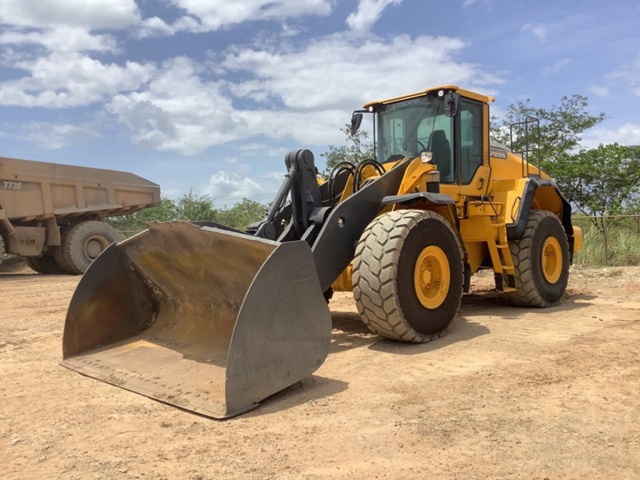

Volvo L150 TP Integrated Tool Carrier
Information
Additional information
| Make | |
|---|---|
| Model | L150 TP, L150F TP |
| Weight | 26 t |
| Configuration | Parallel Linkage |
Equipment Overview
The Volvo L150 is a wheel loader built as an integrated tool carrier from the ground up, current as the L150H. It delivers 220 kW (299 hp) and a 7,700 kg operating load, with Torque Parallel (TP) linkage fitted as standard across the entire range rather than as a separate variant, delivering high breakout force and excellent parallel movement throughout the entire lifting range.
Power comes from a Volvo D13F turbocharged diesel engine, delivering 1,957 N·m of net torque through a Volvo Automatic Power Shift (APS) transmission with fully automatic 1-4 gear shifting. Volvo’s OptiShift technology combines Reverse By Braking with a lock-up torque converter to cut fuel consumption by up to 18%, and the TP linkage’s open bucket design and strong rollback angles suit rehandling, extraction, block-handling, and recycling attachment work.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Volvo D13F, 6-cylinder turbo diesel, 12.8 L |
| Power Output | 220 kW (299 hp) @ 1,300 rpm |
| Max Torque | 1,957 N·m @ 1,000 rpm |
| Emission Standard | Stage II |
| Transmission | Volvo APS, 4-speed automatic powershift, single-stage torque converter with lock-up |
| Drive Type | 4WD, articulated frame, 100% front differential lock |
| Operating Weight | 25,660 kg |
| Operating Load | 7,700 kg |
| Static Tipping Load (straight, GP bucket) | 17,690 kg |
| Breakout Force | 19,573 kgf (192 kN) |
| Max Travel Speed | 38 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | 7,380 mm (from clearance circle) |
Typical Applications
- Rehandling and extraction work
- Block-handling and recycling
- Log handling
- Large-scale material handling
