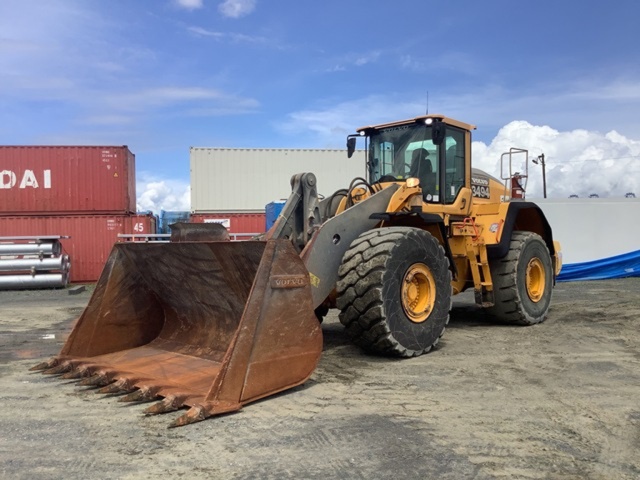

Volvo L220 TP Integrated Tool Carrier
Information
Additional information
| Make | |
|---|---|
| Model | L220 TP, L220H TP |
| Weight | 33 t |
| Configuration | Parallel Linkage |
Equipment Overview
The Volvo L220 is a wheel loader built as an integrated tool carrier from the ground up, current as the L220H, the largest model in Volvo’s TP-linkage wheel loader range. It delivers 273 kW (371 hp) and a 10,080 kg operating load, with Torque Parallel (TP) linkage fitted as standard rather than as a separate variant, delivering high breakout force and excellent parallel movement throughout the entire lifting range.
Power comes from a Volvo D13F turbocharged diesel engine, delivering 2,220 N·m of net torque through a Volvo Automatic Power Shift (APS) transmission with fully automatic 1-4 gear shifting and an HTL307B torque converter. Volvo’s OptiShift technology combines Reverse By Braking with a lock-up torque converter to cut fuel consumption by up to 18%, and the TP linkage’s strength suits heavy block-handling, extraction, and large-scale rehandling work.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Volvo D13F, 6-cylinder turbo diesel, 12.8 L |
| Power Output | 273 kW (371 hp) @ 1,300–1,400 rpm |
| Max Torque | 2,220 N·m @ 1,100 rpm |
| Emission Standard | Stage II |
| Transmission | Volvo APS, 4-speed automatic powershift, HTL307B torque converter with lock-up |
| Drive Type | 4WD, articulated frame, 100% front differential lock |
| Operating Weight | 32,810 kg |
| Operating Load | 10,080 kg |
| Static Tipping Load (straight, GP bucket) | 20,910 kg |
| Breakout Force | 24,930 kgf (244.5 kN) |
| Max Travel Speed | 38 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | 7,805 mm (from clearance circle) |
Typical Applications
- Heavy block-handling and extraction
- Large-scale rehandling
- Log handling
- Quarry and bulk material handling
