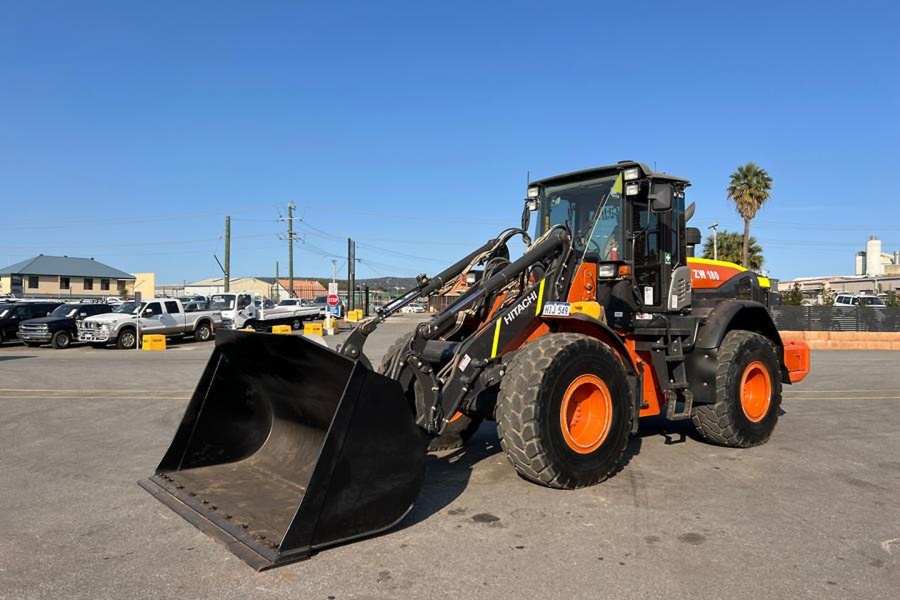

Hitachi ZW180PL Integrated Tool Carrier
Information
Additional information
| Make | |
|---|---|
| Model | ZW180PL, ZW180PL-5, ZW180PL-7 |
| Weight | 15 t |
| Configuration | Parallel Linkage |
Equipment Overview
The Hitachi ZW180PL is a wheel loader built as an integrated tool carrier, fitted with a parallel-link front arm to keep forks and tools parallel with the ground throughout the lift cycle, current as the ZW180PL-7. It delivers 129 kW (173 hp) and a 14,990 kg operating weight, matching the base ZW180’s engine and weight class while trading the standard Z-bar arm for much greater visibility when running forks and other attachments.
Power comes from a Cummins B6.7 turbocharged diesel engine meeting EU Stage V emission standards, delivering 1,104 N·m of torque through a 5-speed powershift transmission. Approach speed control lets travel speed be adjusted with fewer pedal operations during loading, reducing operator fatigue and fuel consumption, and limited-slip differentials together with an auto power-up function ensure strong traction and hill-climbing performance.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins B6.7, 6-cylinder turbo diesel, 6.69 L |
| Power Output | 129 kW (173 hp) |
| Max Torque | 1,104 N·m |
| Emission Standard | EU Stage V |
| Transmission | 5-speed powershift |
| Drive Type | 4WD, articulated frame, limited-slip differentials |
| Operating Weight | 14,990 kg |
| Bucket Capacity | 2.4–3.0 m³ |
| Breakout Force | 13,010 kg |
| Static Tipping Load | 12,570 kg |
| Max Travel Speed | 39 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,725 mm |
| Width | NA |
| Height | 3,310 mm |
| Wheelbase | NA |
| Turning Radius | 5,235 mm (outside) |
Typical Applications
- Pallet and fork handling
- Industrial and warehouse material handling
- Landscaping and site preparation
- General attachment-driven site work
