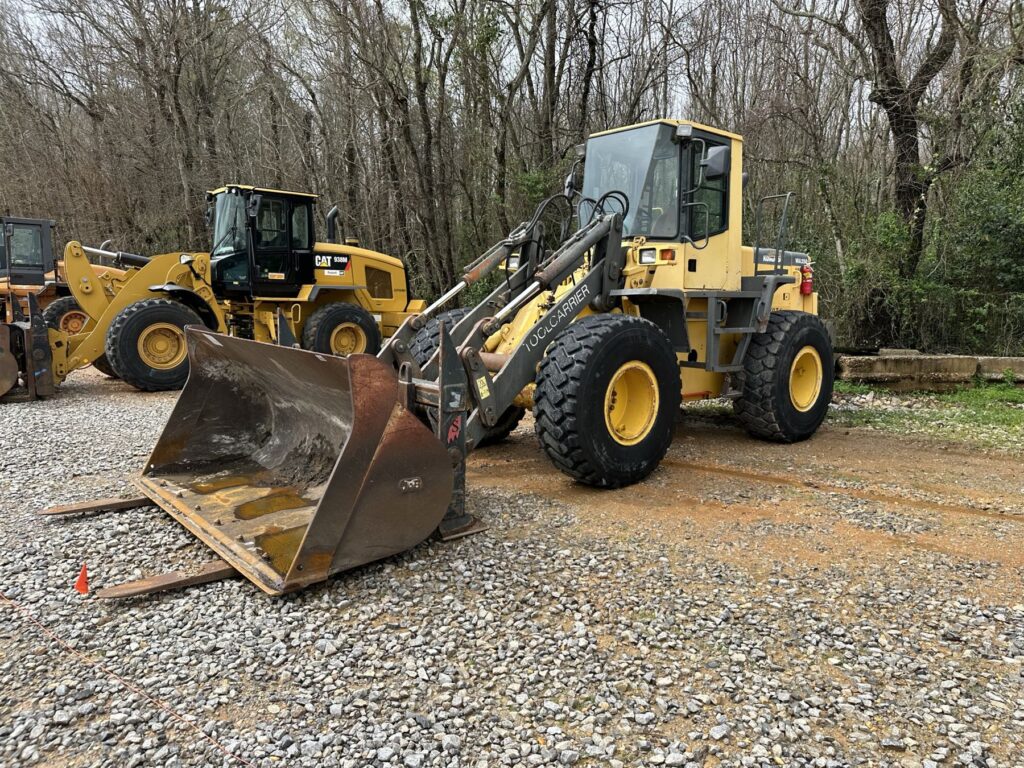

Komatsu WA250PT Integrated Tool Carrier
Information
Additional information
| Make | |
|---|---|
| Model | WA250PT, WA250PT-5H |
| Weight | 13 t |
| Configuration | Heavy Duty, Parallel Linkage |
Equipment Overview
The Komatsu WA250PT is an integrated tool carrier built for versatile attachment work, sharing its core engine, hydraulics, and driveline with the WA250 wheel loader. It delivers 101 kW (135 hp) and a 12,880 kg operating weight, suited to industrial, civil engineering, and materials handling work needing a parallel-lift boom that keeps loads level throughout the lift cycle.
Power comes from a Komatsu SAA6D102E turbocharged, air-to-air aftercooled diesel engine, driving an electronically controlled hydrostatic transmission (HST) with a 2-motor system and speed range select. A parallel-lift boom design and an integrated hydraulic 4-point quick-coupler are fitted specifically for tool-carrier work such as pallet and fork handling, and an additional side counterweight together with variable dump speed setting and 2-step return-to-dig round out the PT-specific equipment list.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu SAA6D102E, turbo diesel, air-to-air aftercooled, 5.9 L |
| Power Output | 101 kW (135 hp) @ 2,000 rpm |
| Max Torque | 618 N·m @ 1,400 rpm |
| Emission Standard | EC Stage II |
| Transmission | Electronically controlled hydrostatic (HST), 2-motor system, speed range select |
| Drive Type | 4WD, articulated frame, TPD-differential front and rear |
| Operating Weight | 12,880 kg |
| Bucket Capacity | 2.0 m³ (universal, PT-specific); 2.0–4.0 m³ range |
| Lifting Force | 10,708 kgf (105 kN) |
| Max Travel Speed | 38 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 7,275 mm |
| Width | 2,470 mm |
| Height | 3,240 mm |
| Wheelbase | 2,900 mm |
| Turning Radius | NA |
Typical Applications
- Pallet and fork handling
- Industrial and warehouse material handling
- Landscaping and nursery work
- General attachment-driven site work
