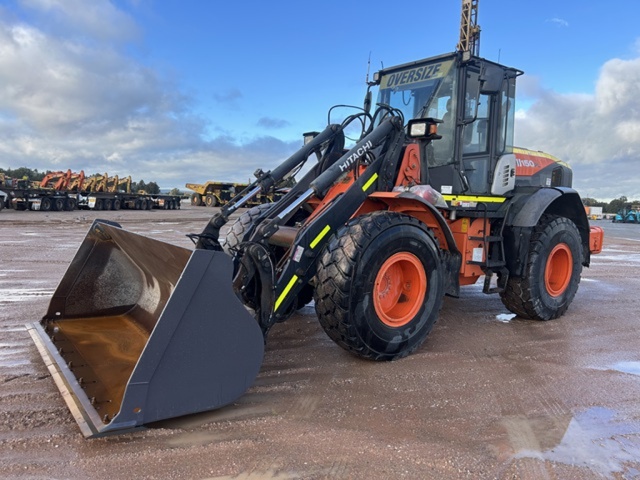

Hitachi ZW150PL Integrated Tool Carrier
Information
Additional information
| Make | |
|---|---|
| Model | ZW150PL, ZW150PL-5 |
| Weight | 13 t |
| Configuration | Parallel Linkage |
Equipment Overview
The Hitachi ZW150PL is a wheel loader built as an integrated tool carrier, fitted with a parallel-link front arm to keep forks and tools parallel with the ground throughout the lift cycle. It delivers a 13,100 kg operating weight and a 2.1 m³ bucket capacity, current as the ZW150PL-6, suited to pallet and fork work needing much greater visibility than a standard Z-bar loader arm allows.
Power drives an articulated-frame 4WD chassis through a powershift transmission with a top speed of 39 km/h. The parallel-link arm configuration is the defining feature over the standard ZW150, keeping attachments level as they raise and lower, and a quick-hitch hydraulic system together with air conditioning round out the standard equipment list.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel |
| Power Output | NA |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Powershift |
| Drive Type | 4WD, articulated frame |
| Operating Weight | 13,100 kg |
| Bucket Capacity | 2.1 m³ |
| Lifting Force | 10,912 kgf (107 kN) |
| Static Tipping Load | NA |
| Max Travel Speed | 39 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 7,800 mm |
| Width | 2,490 mm |
| Height | 3,260 mm |
| Wheelbase | NA |
| Turning Radius | 5,980 mm (outside) |
Typical Applications
- Pallet and fork handling
- Industrial and warehouse material handling
- Landscaping and site preparation
- General attachment-driven site work
