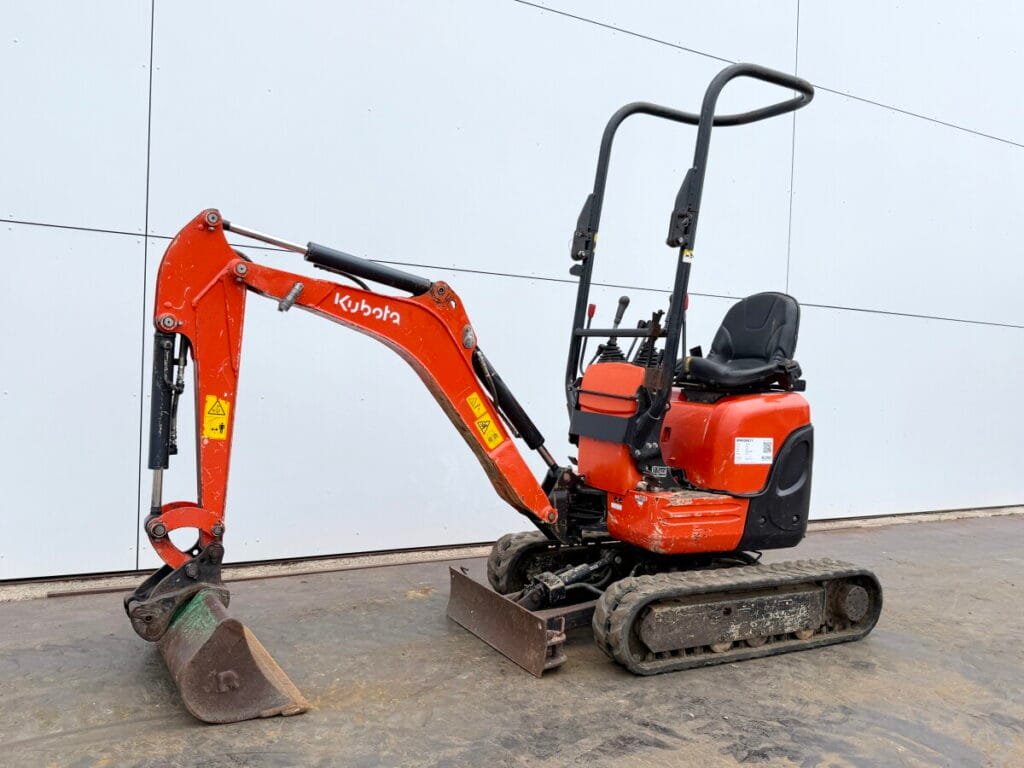

Kubota U10 Micro Excavator

Information

Additional information

Make	Kubota
Model	U10, U10-5
Weight	1.2 t

Equipment Overview

The Kubota U10 is a 1.2-tonne zero tail swing mini excavator, built so the rear of the machine never extends past the tracks during a full 360-degree slew. That makes it suited to roadside work, fence lines and any job where swinging into a wall or an adjacent lane isn’t an option. The hydraulically adjustable track gauge runs from 750 mm to 990 mm, and digging depth reaches 1.8 m with a maximum reach of 3.3 m.

The Kubota D722-E4-BH-5US engine is a water-cooled 3-cylinder diesel using Kubota’s E-TVCS combustion system, rated at 10.1 hp net (10.3 hp gross) at 2,050 rpm and certified to Tier 4 Final / EU Stage V emissions standards. Drive is hydrostatic, with a two-speed travel pedal switching between 2 km/h and 4 km/h, and hydraulic side levers control the digging equipment. A front foldable ROPS lets the machine travel under low doorways.

Technical Specifications

Specification	Value
Engine	Kubota D722-E4-BH-5US, water-cooled 3-cylinder diesel (E-TVCS)
Power Output	10.1 hp net / 10.3 hp gross @ 2,050 rpm
Max Torque	NA
Emission Standard	EPA Tier 4 Final / EU Stage V
Transmission	Hydrostatic, 2-speed travel
Drive Type	Rubber crawler track, adjustable gauge 750-990 mm, zero tail swing
Operating Weight	1,200 kg (canopy)
Digging Depth	1,800 mm
Bucket Capacity	NA
Reach	3,380 mm (3,330 mm at ground level)
