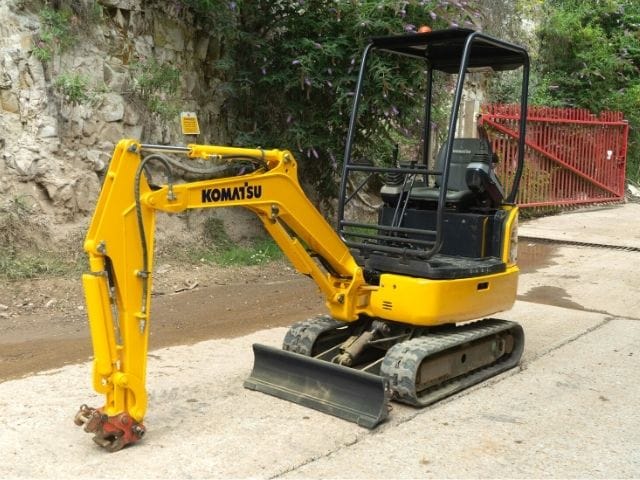

Komatsu PC14R Micro Excavator

Information

Additional information

Make	Komatsu
Model	PC14R, PC14R-2H8
Weight	1.4 t

Equipment Overview

The Komatsu PC14R is a compact mini excavator built for confined-space work, sitting in Komatsu’s MR-3 series alongside the PC16R and PC18MR with a shortened swing radius for use in restricted areas. Operating weight runs from 1,440 kg to 1,800 kg depending on configuration, with a 0.03 to 0.06 m³ bucket capacity covering a range of trenching and general digging tasks. The variable undercarriage narrows the machine for access through gates and site boundaries, then widens back out for stability while digging.

Engine power is 11.6 kW (15.6 hp) at 2,600 rpm, driving a Closed Load Sensing System hydraulic circuit with servo controls for smooth, precise combined movements. The machine is available with a standard 880 mm digging arm or an optional 1,130 mm long arm, in canopy or cab configuration, and on rubber or steel shoes. A cast swing support and boom-routed hydraulic hoses are built in for added durability on demolition and hammer work.

Technical Specifications

Specification	Value
Engine	Komatsu diesel, 3-cylinder
Power Output	11.6 kW (15.6 hp) @ 2,600 rpm
Max Torque	NA
Emission Standard	NA
Transmission	Hydrostatic, CLSS load-sensing hydraulics
Drive Type	Rubber track (steel track optional), variable undercarriage
Operating Weight	1,440 kg to 1,800 kg (by configuration)
Digging Depth	2,000 mm
Bucket Capacity	0.03 m³ to 0.06 m³ (350 mm standard bucket)
Reach	3,545 mm
