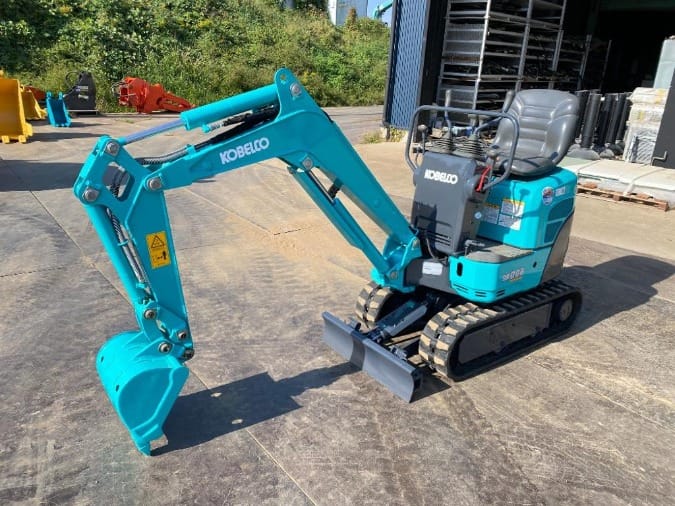

Kobelco SK008 Micro Excavator

Information

Additional information

Make	Kobelco
Model	SK008
Weight	1 t

Equipment Overview

The Kobelco SK008 is the smallest excavator in Kobelco’s mini excavator range, a 0.8-tonne class machine built for residential sites where space is tight. Its retracted crawler width of just 680 mm lets it pass through gates around 70 cm wide, and the tail overhang is only 305 mm, so the machine can swing right up against a wall without the rear end catching. It has an operating weight of 1,035 kg and a 1.5 m maximum digging depth, suited to garden and courtyard work as much as general residential excavation.

Power comes from a Perkins 402J-05 engine, a vertical water-cooled 2-cylinder diesel producing 7.7 kW gross at 2,400 rpm, built to conform with the Japan Land Engine Manufacturers Association’s voluntary emissions regulations. Drive is through a variable displacement axial piston travel motor, with a hydraulically retractable and self-cleaning crawler frame that extends the track gauge from 680 mm out to 840 mm for extra stability once the machine is on site.

Technical Specifications

Specification	Value
Engine	Perkins 402J-05, vertical water-cooled 2-cylinder diesel
Power Output	7.7 kW (10.5 PS) @ 2,400 rpm
Max Torque	NA
Emission Standard	Japan Land Engine Manufacturers Association voluntary emissions regulations
Transmission	Hydrostatic (variable displacement axial piston travel motor)
Drive Type	Rubber crawler track, 680 mm (retracted) / 840 mm (extended)
Operating Weight	1,035 kg
Digging Depth	1,500 mm
Bucket Capacity	0.022 m³ heaped / 0.016 m³ struck (350 mm standard bucket)
Reach	2,800 mm
