EquipmentYanmar SV08 Micro Excavator
Model
SV08

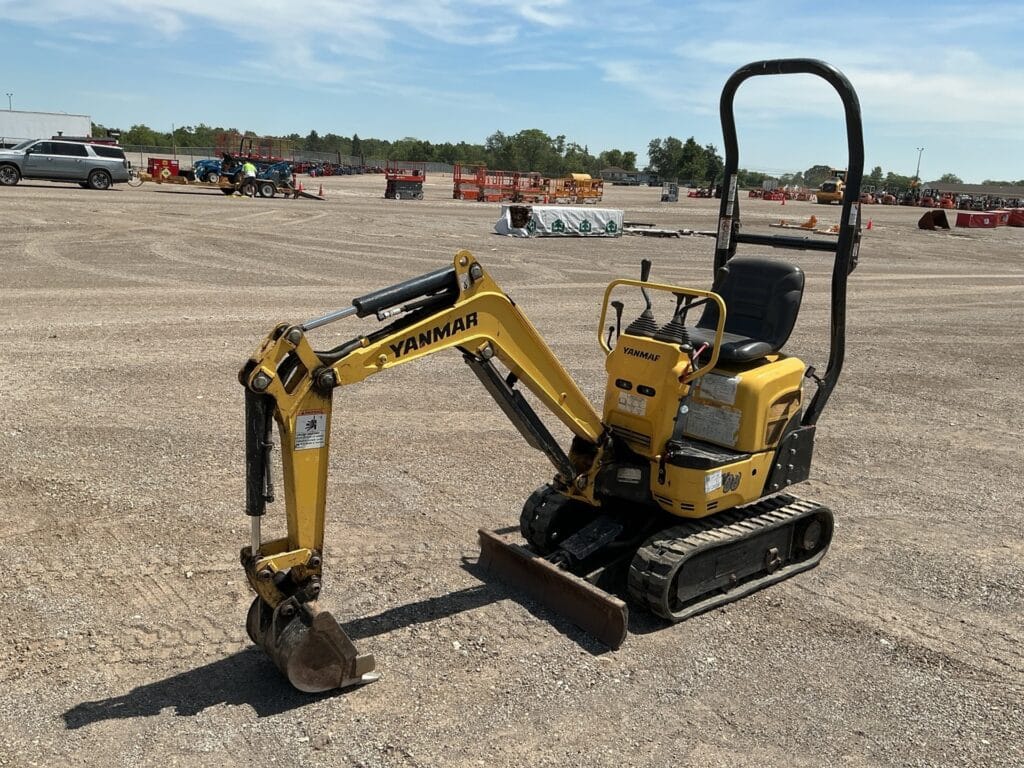

Yanmar SV08 Micro Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SV08 |
| Weight | 1 t |
Equipment Overview
The Yanmar SV08 is an ultra-mini excavator weighing just over a tonne, built for foundation work, structural alteration, water and sewer pipe laying and landscaping in spaces too tight for a standard excavator. A variable track gauge extends from 680 mm to 840 mm, letting the machine narrow down to enter through gates and back alleys between buildings before widening back out for a stable working stance. Rear swing radius is just 725 mm.
The engine is a vertical, water-cooled 2-cylinder diesel, model 402J-05, rated at 7.7 kW (10.3 hp) at 2,400 rpm. Drive is hydrostatic, fed by twin 9.8 L/min gear pumps, running on rubber tracks with a swing speed of 8.0 rpm and a 45-degree left / 90-degree right boom swing angle for digging close to walls. Maximum digging force is 10.5 kN, with a standard bucket capacity of 0.022 m³ heaped.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar 402J-05, vertical water-cooled 2-cylinder diesel |
| Power Output | 7.7 kW (10.3 hp) @ 2,400 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic (twin gear pumps) |
| Drive Type | Rubber crawler track, adjustable gauge 680-840 mm |
| Operating Weight | 1,035 kg |
| Digging Depth | 1,460 mm |
| Bucket Capacity | 0.022 m³ heaped (ISO) |
| Reach | 2,730 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,600 mm |
| Width | 680 mm (retracted) / 840 mm (extended) |
| Height | 2,200 mm |
| Undercarriage Length | 1,220 mm |
| Tail Swing Radius | 725 mm |
Typical Applications
- Foundation work and structural alteration
- Water and sewer pipe laying
- Residential landscaping in confined yards
- Excavation through gates and back-alley access
