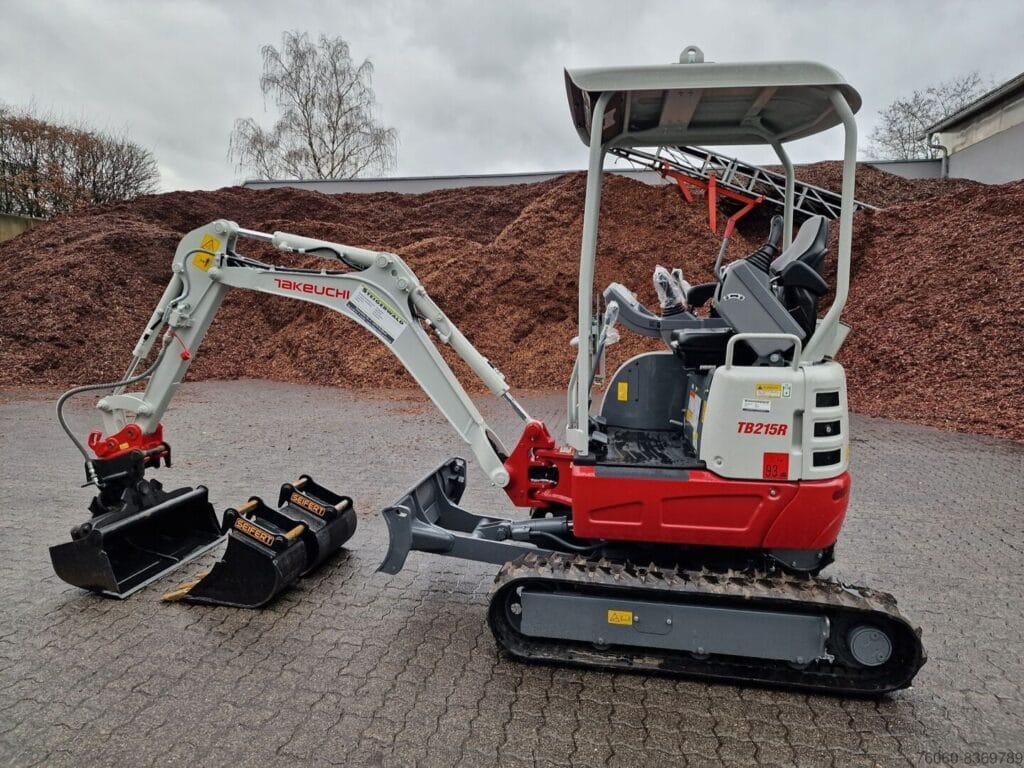

Takeuchi TB215R Micro Excavator

Information

Additional information

Make	Takeuchi
Model	TB215R
Weight	1.6 t

Equipment Overview

The Takeuchi TB215R is a 1.5-tonne mini excavator with a minimal tail swing design, letting it work in confined sites with little concern for the rear of the machine catching on obstacles. Operating weight is 1,610 kg, and a hydraulically retractable undercarriage runs from 980 mm to 1,300 mm, so the machine can pass through a standard gate or doorway before widening out for stability once on site. Maximum digging depth is 2,190 mm.

Power is a Yanmar 3TNV70 diesel rated at 11.5 kW (15 hp), meeting EU Stage V emissions standards. Drive is hydrostatic, with an automatic two-speed travel shift operated from a button on the right travel lever. Bucket breakout force is 14.0 kN and arm breakout force 9.5 kN, with a wraparound counterweight protecting the engine and hydraulic components at the rear, and a heavy-duty dozer blade with integrated anchor points for attachment work.

Technical Specifications

Specification	Value
Engine	Yanmar 3TNV70 diesel
Power Output	11.5 kW (15 hp)
Max Torque	NA
Emission Standard	EU Stage V compliant
Transmission	Hydrostatic, automatic 2-speed travel shift
Drive Type	Rubber crawler track, retractable undercarriage 980-1,300 mm
Operating Weight	1,610 kg
Digging Depth	2,190 mm
Bucket Capacity	0.038 m³
Reach	NA
