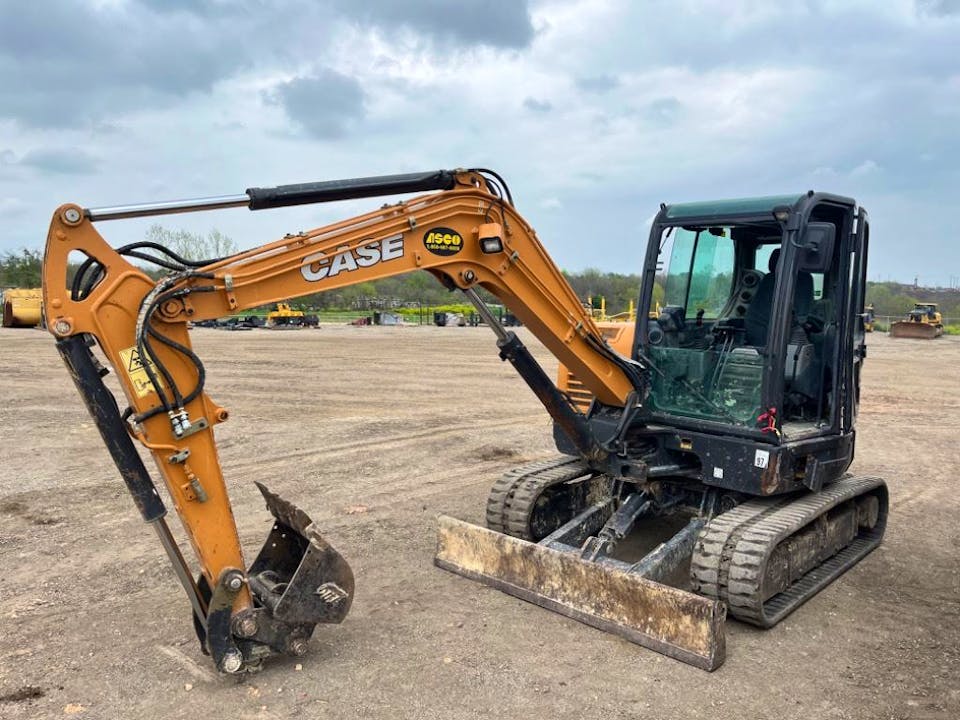

CASE CX60C Mini Excavator

Information

Additional information

Make	CASE
Model	CX60C
Weight	6 t

Equipment Overview

The CASE CX60C is a 6-tonne mini excavator, the largest in the CASE mini class, bridging toward the midi class for utility, residential, irrigation, plumbing and light commercial excavation work. A short-radius tailswing and adjustable boom let it work in close quarters, and flow summation during boom movement increases cycle speed while an additional pump minimises simultaneous-movement malfunctions. Long and short arms are available for maximum digging depth or maximum breakout force, with counterweights available for added stability and lifting capacity.

Power comes from a Tier 4 Final diesel with High Pressure Common Rail technology for optimal fuel usage, and standard Auto Shift-Down automatically changes from 2nd to 1st gear when extra traction is needed. Bucket breakout force reaches around 40.9 kN, and a fully glazed cabin with slim, robust pillars gives outstanding all-round visibility, backed by a rearview camera and rear working lights. An easy-to-read 5.7-inch colour touchscreen displays engine and hydraulic temperatures, fuel level and complete maintenance information.

Technical Specifications

Specification	Value
Engine	Diesel, Tier 4 Final
Power Output	NA
Max Torque	NA
Emission Standard	EPA Tier 4 Final / EU Stage V
Transmission	Hydrostatic, dual-path drivetrain
Drive Type	Rubber track, 400 mm shoes
Operating Weight	5,980 kg
Digging Depth	3,570 mm
Bucket Capacity	0.25 m³
Reach	6,010 mm
