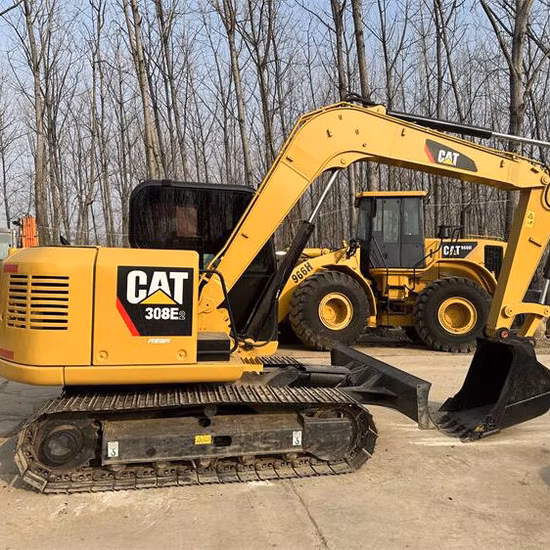

CAT 308 CR Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | 308 CR, 308E, 308E2 CR |
| Weight | 8.1 t |
Equipment Overview
The Cat 308 CR is an 8.1 to 9.4-tonne mini excavator delivering power and performance in an 8-tonne size class for a wide range of applications. Zero tail swing and a compact-radius design suit tight urban and residential sites, and the machine meshes well with the growing trend of urban redevelopment work. A straight or wide blade option, together with counterweight and long-stick configurations, lets fleets adjust the machine to different jobs, from footings and septic systems to foundations and slope work.
Power comes from a Cat C3.3B engine producing 69.5 hp (51.8 kW) net, meeting EPA Tier 4 Final, EU Stage V and Japan 2014 emissions standards through a turbo and diesel particulate filter. Bucket digging force reaches 62.0 kN, and load-sensing, flow-sharing hydraulics with a Smart Tech electronic pump give efficient, responsive control. Cat Indicate adds visual and audible bucket-placement guidance relative to target grade, and Cat E-Fence restrains machine motion to preset boundaries when working beneath power lines, ceilings and trees, or above utilities.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C3.3B, 3.33 L diesel |
| Power Output | 69.5 hp (51.8 kW) |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final / EU Stage V / Japan 2014 |
| Transmission | Hydrostatic, load-sensing/flow-sharing hydraulics |
| Drive Type | Rubber track / steel track with rubber pads |
| Operating Weight | 8,146 kg to 9,380 kg |
| Digging Depth | 4,108 mm to 4,643 mm |
| Bucket Capacity | NA |
| Reach | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Track Width | NA |
| Tail Swing Radius | NA |
Typical Applications
- Urban redevelopment and confined-space excavation
- Footings, septic systems and foundations
- Slope work and utility trenching
- General site prep in tight quarters
