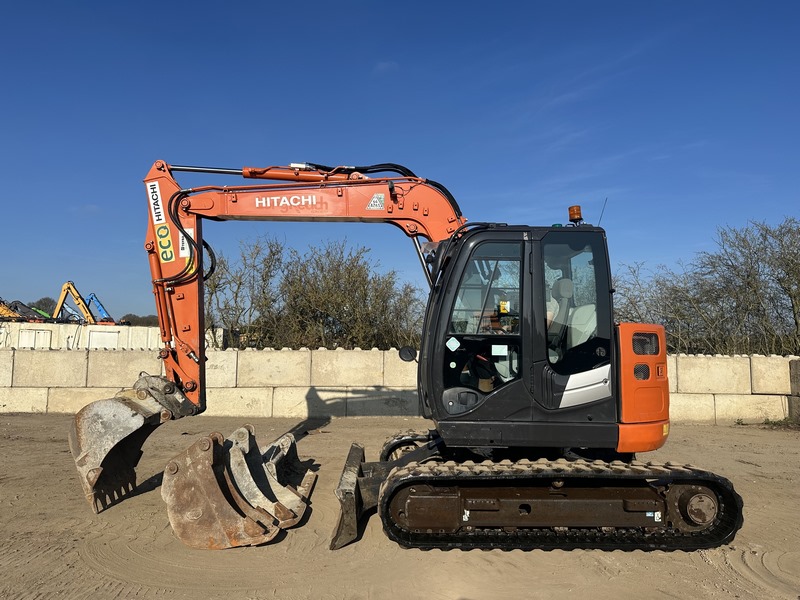

Hitachi ZX85USB Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | ZX85USB, ZX85USB-5 |
| Weight | 8.3 t |
Equipment Overview
The Hitachi ZX85USB is an 8.3 to 9-tonne compact excavator built for residential and congested job environments, with a reduced tail swing and swing boom letting operators work confidently near structures, traffic lanes and other obstacles without compromising stability or digging capability. It delivers strong digging force, smooth hydraulic response and dependable lifting capacity comparable to larger excavators, and precision pilot controls give smooth operation for trenching, grading, loading and attachment work.
Power comes from a Yanmar engine producing 63.7 hp (47.5 kW) net, balancing power with efficiency for a wide range of applications. Maximum digging depth reaches 4.53 m and maximum reach 7.42 m, and an advanced hydraulic system with a high flow rate and swing capacity supports numerous attachments for tough digging operations. Ground-level maintenance access and ConSite Oil and Air monitoring systems help reduce downtime and keep the machine working through demanding job sites.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar diesel |
| Power Output | 63.7 hp (47.5 kW) |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Rubber track, 450 mm shoes |
| Operating Weight | 8,286 kg to 8,994 kg |
| Digging Depth | 4,530 mm |
| Bucket Capacity | 0.28 m³ |
| Reach | 7,420 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,820 mm |
| Width | 2,260 mm |
| Height | 2,530 mm |
| Track Width | 450 mm |
| Tail Swing Radius | NA |
Typical Applications
- Residential construction and utility installation
- Site development in confined commercial areas
- Trenching and grading
- Loading and attachment work
