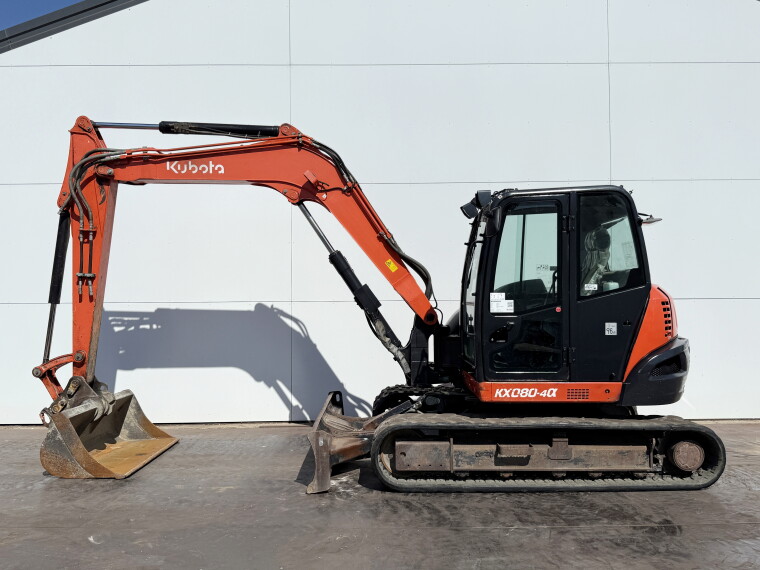

Kubota KX080 Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | KX080, KX080-4 |
| Weight | 8.3 t |
Equipment Overview
The Kubota KX080 is Kubota’s largest mini excavator, an 8.3-tonne machine offering the performance of a mid-size excavator without sacrificing manoeuvrability, ideal for tight job sites and demanding construction tasks. It’s built for heavy-duty digging, lifting and grading while maintaining compact agility, handling buckets, grapples, tilting buckets, hydraulic breaker hammers, crushers and earth drillers across a wide range of construction and landscaping projects.
Power comes from a Kubota diesel engine producing 49.6 kW, giving the machine ample power for demanding tasks. Bucket digging force reaches 62.2 kN and arm digging force 40.5 kN, providing plenty of muscle for digging and breaking through tough materials. Maximum digging depth reaches 4,600 mm and dumping height 5,400 mm, making it easy to load materials into trucks and containers, and a tail swing radius of 1,900 mm lets it manoeuvre confidently in confined areas.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota diesel |
| Power Output | 49.6 kW |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Rubber track |
| Operating Weight | 8,316 kg |
| Digging Depth | 4,600 mm |
| Bucket Capacity | NA |
| Reach | 7,200 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Track Width | NA |
| Tail Swing Radius | 1,900 mm |
Typical Applications
- Heavy-duty digging and grading
- Trenching and foundation work
- Demolition and material handling
- Attachment work with breakers and drillers
