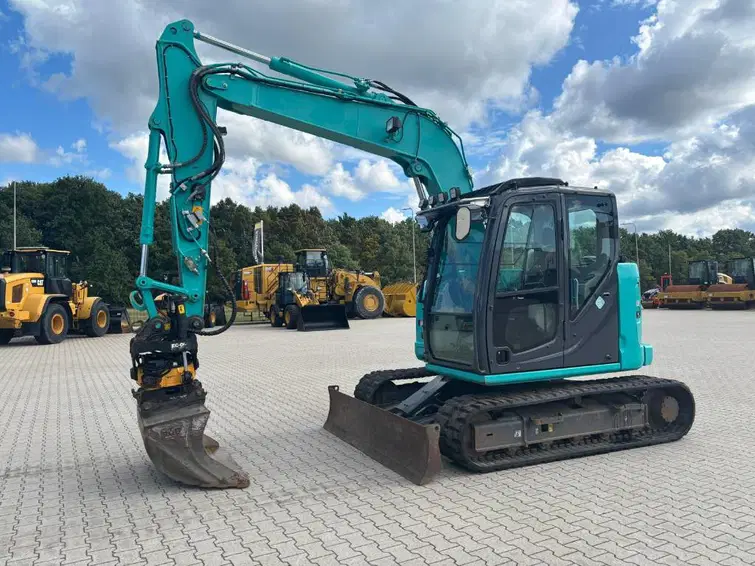

Kobelco SK75SR Mini Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SK75SR, SK75SR-3 |
| Weight | 8t |
Equipment Overview
The Kobelco SK75SR is a 7.98-tonne short rear swing excavator built for the power, fuel economy and features needed to tackle jobs in tight spaces, from Kobelco, the inventor of the short rear swing excavator category. Lifting capacity improved by 27.2% over the previous generation, and an attachment selection system with adjustable flow-rate presets adds multi-function capability across a range of tools. Built-in rear, left- and right-side cameras use a customisable split-screen display for improved site visibility.
Power comes from a Yanmar 4TNV98CT engine producing 70 hp, meeting Tier 4 Final emissions standards without needing diesel exhaust fluid, with output up 28% over the previous model. Bucket digging force reaches 60.2 kN with the standard arm, and the exclusive iNDr cooling system reduces dust while delivering ultra-quiet operation. Multiple mode settings, including S-mode for normal operation and ECO-mode for maximum fuel economy, let operators dial in the right balance of performance and running cost.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar 4TNV98CT |
| Power Output | 70 hp |
| Max Torque | NA |
| Emission Standard | Tier 4 Final |
| Transmission | Hydrostatic, 2 variable displacement axial piston pumps |
| Drive Type | Rubber track, 450 mm shoes |
| Operating Weight | 7,980 kg |
| Digging Depth | 4,580 mm |
| Bucket Capacity | 0.28 m³ |
| Reach | 6,880 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,560 mm |
| Width | 2,300 mm |
| Height | 2,570 mm |
| Track Width | 450 mm |
| Tail Swing Radius | NA |
Typical Applications
- Urban and confined-site construction
- Utility installation and trenching
- Landscaping and general excavation
- Attachment work with breakers and grapples
