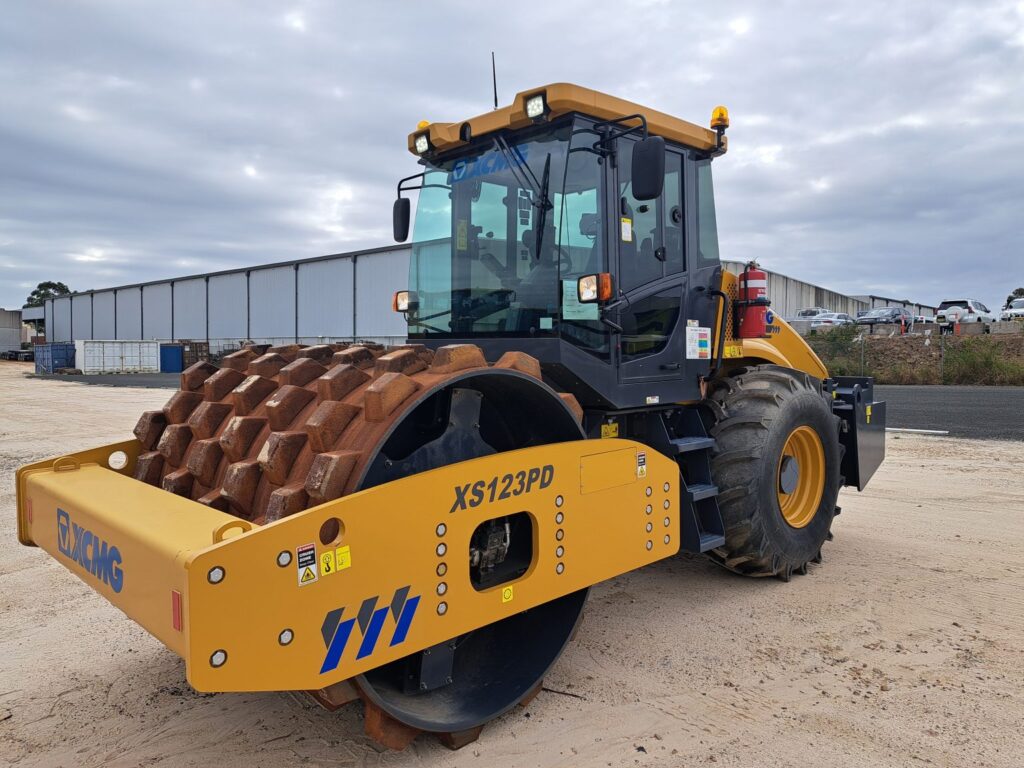

XCMG XS123PD Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | XS123PD |
| Weight | 12 t |
Equipment Overview
The XCMG XS123PD is a single drum padfoot roller with a 2,130 mm drum width, built as a 12-tonne class solution for road construction and infrastructure projects. It has an operating weight of 12,404 kg, with a padfoot shell kit included as standard for cohesive soil compaction.
Power comes from a Cummins QSF3.8 water-cooled turbocharged engine producing 130 hp at 2,200 rpm, offering high power reserve, low fuel consumption and low noise emission. A proportional closed-loop hydraulic drive system with a variable displacement pump and constant motor ensures strong drive performance and gradeability, and the roller reaches a top speed of 11.3 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSF3.8, water-cooled turbocharged |
| Power Output | 130 hp @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Closed-loop hydraulic, two-gear variable speed |
| Drive Type | Variable displacement pump, wet-type drive axle |
| Operating Weight | 12,404 kg |
| Drum Width | 2,130 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Road construction and infrastructure projects
- Cohesive soil compaction with the standard padfoot shell kit
- Base and subgrade compaction
- Municipal and civil earthworks
