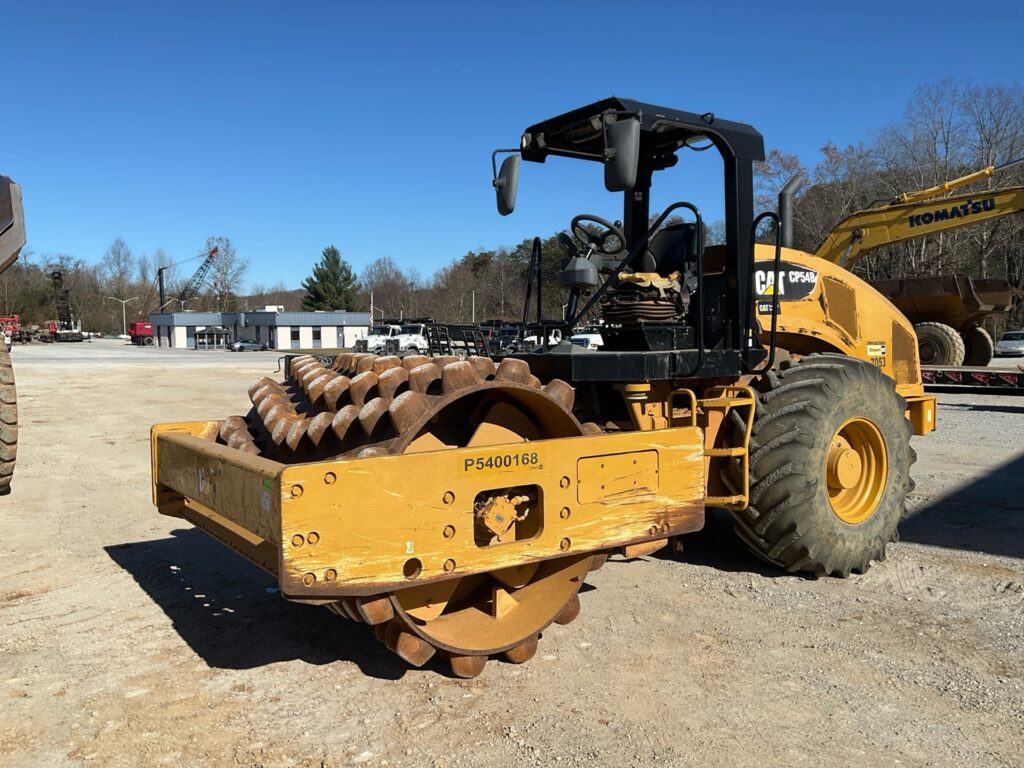

CAT CP54B Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | CP54B |
| Weight | 11 t |
Equipment Overview
The CAT CP54B is a padfoot drum vibratory soil compactor built for cohesive and semi-cohesive soil applications, with a 2,134 mm drum width fitted with 140 oval pads. It has an operating weight of 10,820 kg (with ROPS/FOPS canopy), suited to road construction, aggregate bases and larger earth fills in the 10–12 tonne weight class.
Power comes from a Cat C4.4 engine producing 96.5 kW (129.4 hp), driving a dual pump propel system with separate flow to the drum drive and rear axle for strong gradeability and traction. The vibratory system runs at 30.5 Hz with up to 266 kN of centrifugal force, and Cat Compaction Control (Machine Drive Power) helps the operator confirm when specified density has been reached.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C4.4 diesel |
| Power Output | 96.5 kW (129.4 hp) |
| Max Torque | NA |
| Emission Standard | US EPA Tier 3 / EU Stage IIIA |
| Transmission | Two-speed hydrostatic |
| Drive Type | Dual pump propel: drum drive and rear axle |
| Operating Weight | 10,820 kg |
| Drum Width | 2,134 mm |
| Number of Pad Feet | 140 |
| Exciter Frequency | 30.5 Hz |
| Centrifugal Force | Up to 266 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5,850 mm |
| Width | 2,300 mm |
| Height | 3,110 mm |
| Wheelbase | 2,900 mm |
| Turning Radius | 3,680 mm (inside) |
Typical Applications
- Cohesive and semi-cohesive soil compaction
- Road construction and aggregate base compaction
- Residential construction and larger earth fills
- Agriculture and irrigation projects
