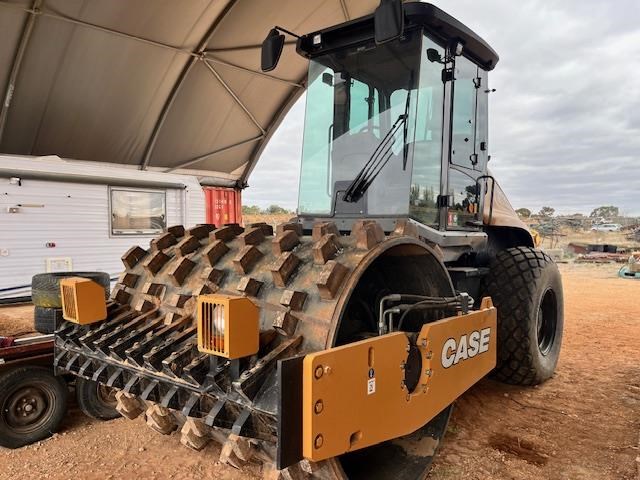

CASE 1107EX-PD Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | 1107EX-PD |
| Weight | 12 t |
Equipment Overview
The CASE 1107EX-PD is a single drum padfoot roller built for vibratory soil compaction, with a padded drum designed for cohesive and high water content materials such as clay and fly ash. It has an operating weight of 12,000 kg with a front axle load of 7,000 kg, delivering a maximum applied force of 217.9 kN.
Power comes from an FPT diesel engine producing approximately 100 hp, driving a vibration system that runs at 34 Hz with a 1.8 mm amplitude for uniform compaction across granular and cohesive soils. The roller is built for road construction and foundation soil compaction on both large-scale infrastructure and urban projects.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | FPT diesel |
| Power Output | approx. 100 hp |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | NA |
| Drive Type | NA |
| Operating Weight | 12,000 kg |
| Drum Width | 2,150 mm |
| Exciter Frequency | 34 Hz |
| Amplitude | 1.8 mm |
| Centrifugal Force | Up to 217.9 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Cohesive and high water content soil compaction (clay, fly ash)
- Road construction and foundation compaction
- Large-scale infrastructure projects
- Urban civil construction sites
