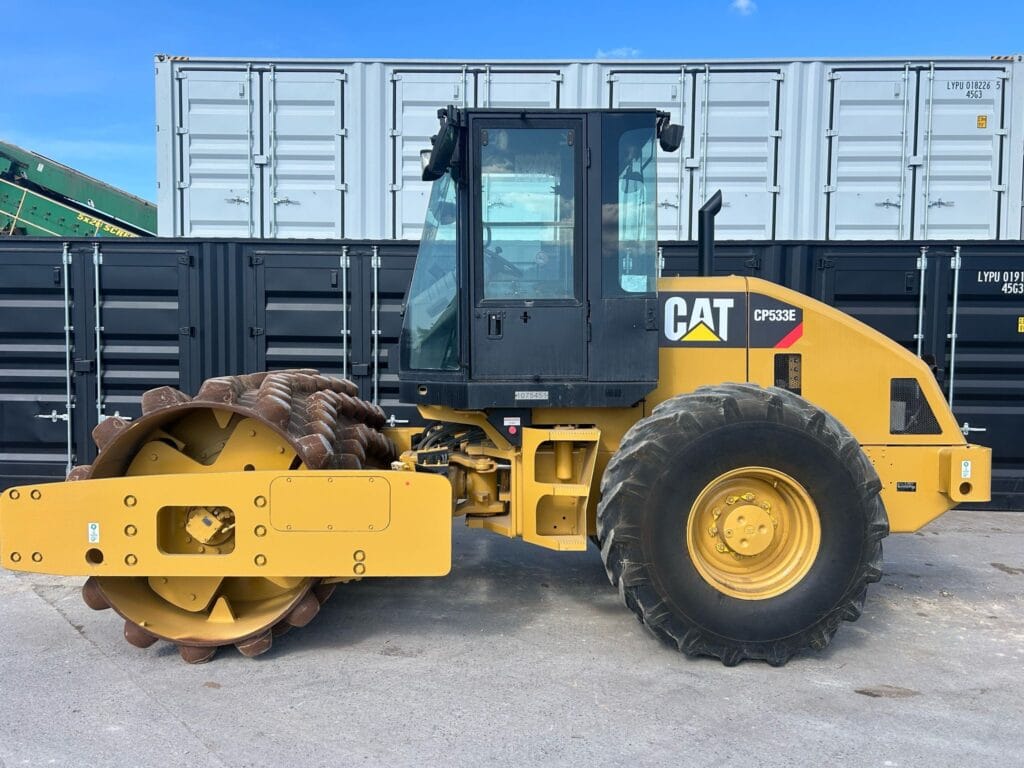

CAT CP533E Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | CP533E |
| Weight | 12 t |
Equipment Overview
The CAT CP533E is a padfoot drum vibratory soil compactor with a 2,134 mm drum width fitted with 140 pads, built for cohesive soil compaction on road and residential construction sites. It has an operating weight of 11,680 kg, part of the 500-Series soil compactors.
Power comes from a Caterpillar 3054C turbocharged engine producing 130.1 hp gross (124.8 hp net), driving a dual pump propel system with separate flow to the drum drive and rear axle for strong gradeability and traction. The vibratory system runs at 31.9 Hz with up to 266 kN of centrifugal force.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Caterpillar 3054C, turbocharged diesel |
| Power Output | 130.1 hp gross / 124.8 hp net |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Dual pump propel: drum drive and rear axle |
| Operating Weight | 11,680 kg |
| Drum Width | 2,134 mm |
| Number of Pad Feet | 140 |
| Exciter Frequency | 31.9 Hz |
| Centrifugal Force | Up to 266 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5,511 mm |
| Width | 2,292 mm |
| Height | 3,072 mm |
| Wheelbase | 2,902 mm |
| Turning Radius | NA |
Typical Applications
- Cohesive soil compaction on road and residential construction
- Larger earth fills and aggregate bases
- Agriculture and irrigation projects
- Following a motor grader on road construction sites
