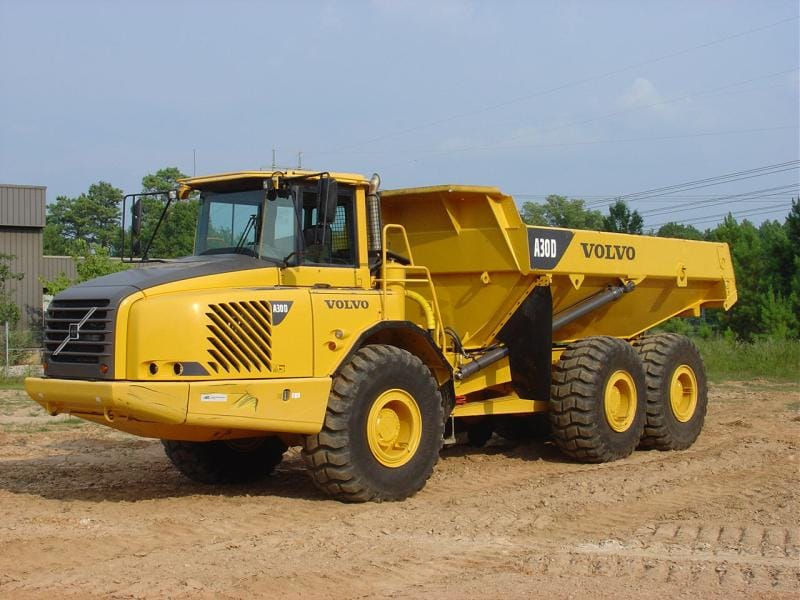

Volvo A30 Articulated Dump Truck
Information
Additional information
| Make | |
|---|---|
| Model | A30, A30F, A30G, A30J |
| Weight | 23t |
| Capacity | 29t |
Equipment Overview
The Volvo A30 is an articulated dump truck built for off-road hauling across broken, uneven ground, part of Volvo’s articulated hauler range below the A35, A40, and A45. It carries a 29,000 kg rated payload and a 17.8 m³ heaped body, producing 265 kW of gross power, suited to general construction, heavy infrastructure, and quarrying.
Power comes from a Volvo D11F engine rated at 265 kW at 2,000 rpm, with 2,040 N·m of peak torque at 1,200 rpm. Automatic Traction Control with Terrain Memory manages wheel slip and remembers slippery ground on repeat routes, and 100% differential locks are available across all axles for difficult terrain. Wet brakes on all wheels combine with the Volvo Engine Brake and a downhill speed control function for controlled descents, and the whole machine stays under three metres wide, including the tailgate, for easy transport between sites.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Volvo D11F |
| Gross Power | 265 kW @ 2,000 rpm |
| Max Torque | 2,040 N·m @ 1,200 rpm |
| Emission Standard | Stage II / Tier 2 |
| Transmission | Fully automatic, differential locks on all axles |
| Drive Type | Six-wheel drive (6×6) with Automatic Traction Control |
| Operating Weight (Empty) | 23,200 kg |
| Gross Weight (Loaded) | 52,200 kg |
| Rated Payload | 29,000 kg |
| Body Capacity (Heaped, SAE 2:1) | 17.8 m³ |
| Max Speed | 53 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | approx. 10,300 mm |
| Overall Width (incl. Tailgate) | under 3,000 mm |
| Overall Height | approx. 3,350 mm |
| Turning Radius (SAE) | NA |
Typical Applications
- General construction site bulk haulage
- Heavy infrastructure and civil earthworks
- Quarry face-to-stockpile hauling
- Rural haul roads with soft or uneven ground
