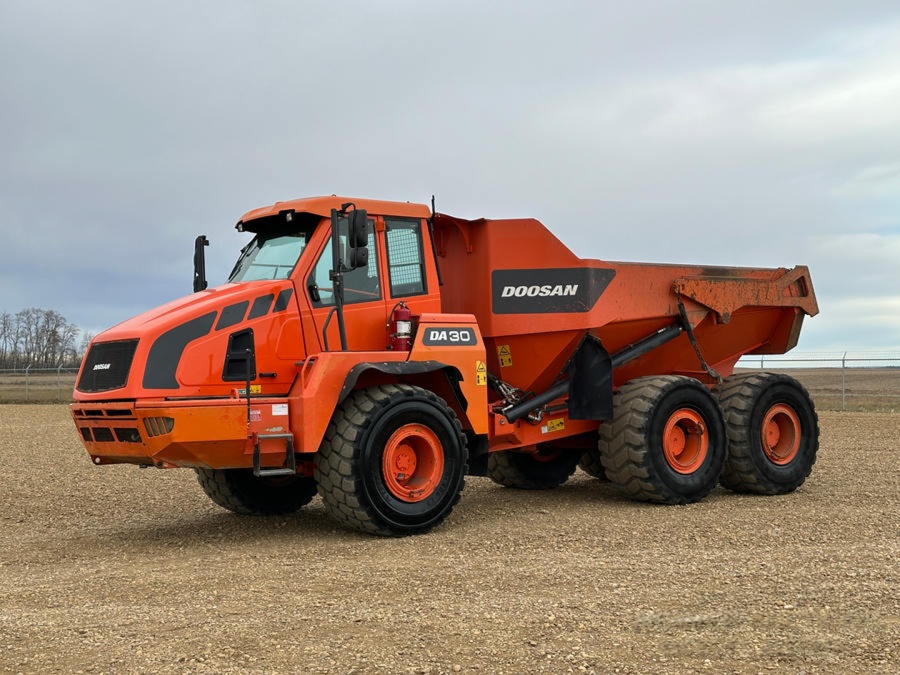

Doosan DA30 Articulated Dump Truck
Information
Additional information
| Make | |
|---|---|
| Model | DA30 |
| Weight | 23 t |
| Capacity | 28 t |
Equipment Overview
The Doosan DA30 is an articulated dump truck built for off-road hauling across broken, uneven ground, part of Doosan’s ADT range alongside the larger DA40. It carries a 28,000 kg rated payload and a 16.8 m³ heaped body, producing 276 kW of power, suited to quarrying, civil earthworks, and general construction hauling.
Power comes from a Scania DC09 engine rated at 276 kW (375 hp) at 2,100 rpm, with 1,873 N·m of peak torque at 1,300 rpm. The engine meets Euro Stage IV (Tier 4 Final) emission standards using SCR and EGR, without a diesel particulate filter. A ZF 8 EP320 transmission auto-shifts through eight forward and four reverse gears with torque-converter lock-up in every gear, driving all six wheels through a torque-proportioning inter-axle differential split one-third front, two-thirds rear. Braking uses enclosed, oil-cooled wet disc brakes on all six wheels, backed by an automatic engine brake and transmission retarder.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Scania DC09, 5-cylinder turbo-diesel with intercooler |
| Power | 276 kW (375 hp) @ 2,100 rpm |
| Max Torque | 1,873 N·m @ 1,300 rpm |
| Emission Standard | Euro Stage IV / Tier 4 Final |
| Transmission | ZF 8 EP320, auto 8 forward / 4 reverse |
| Drive Type | Full-time six-wheel drive (6×6) |
| Operating Weight (Empty) | 23,400 kg |
| Gross Weight (Loaded) | 51,400 kg |
| Rated Payload | 28,000 kg (31 US ton) |
| Body Capacity (Heaped, without Tailgate) | 16.8 m³ |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 9,558 mm |
| Overall Width (Standard Tyres) | 2,990 mm |
| Overall Height | 3,560 mm |
| Turning Radius (ISO 7457) | 7,680 mm |
Typical Applications
- Quarry face-to-stockpile hauling
- Civil earthworks and road construction
- General construction site bulk haulage
- Rural haul roads with soft or uneven ground
