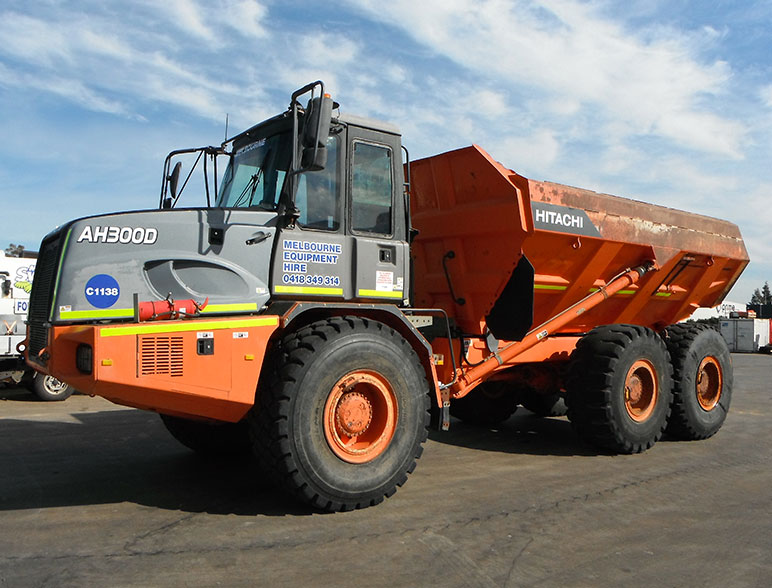

Hitachi AH300 Articulated Dump Truck

Categories Articulated Dump Trucks, Dumpers

Information

Additional information

Make	Hitachi
Model	AH300
Weight	18 t
Capacity	27 t

Equipment Overview

The Hitachi AH300 is an articulated dump truck built for off-road hauling across broken, uneven ground, part of Hitachi’s D-series ADT range between the smaller AH250-D and the larger AH350-D and AH400-D. It carries a 27,300 kg rated payload and a 16.5 m³ heaped body, producing 205 kW of gross power, suited to quarrying, mining support, and civil earthworks.

Power comes from a Mercedes-Benz OM906LA engine, an inline-six turbocharged and intercooled diesel rated at 205 kW (275 hp) gross and 198 kW (266 hp) net, with 1,070 N·m of peak torque. A ZF 6HP592C automatic transmission with hydrodynamic torque converter and lock-up in all gears drives all six wheels through a VGR 13100 transfer box with a pneumatically lockable inter-axle differential. Braking uses full-hydraulic caliper brakes on all wheels, backed by a transmission retarder, automatic exhaust brake, and engine valve brake for controlled descents.

Technical Specifications

Specification	Value
Engine	Mercedes-Benz OM906LA, inline-6 turbo-diesel with intercooler
Gross Power	205 kW (275 hp) @ 2,200 rpm
Net Power	198 kW (266 hp) @ 2,200 rpm
Max Torque	1,070 N·m @ 1,200–1,600 rpm
Emission Standard	NA
Transmission	ZF 6HP592C automatic with integral retarder
Drive Type	Six-wheel drive (6×6) via VGR 13100 transfer box
Operating Weight (Empty)	18,000 kg
Gross Weight (Loaded)	45,300 kg
Rated Payload	27,300 kg (60,190 lb)
Body Capacity (Heaped, SAE 2:1)	16.5 m³
