Model
TA230

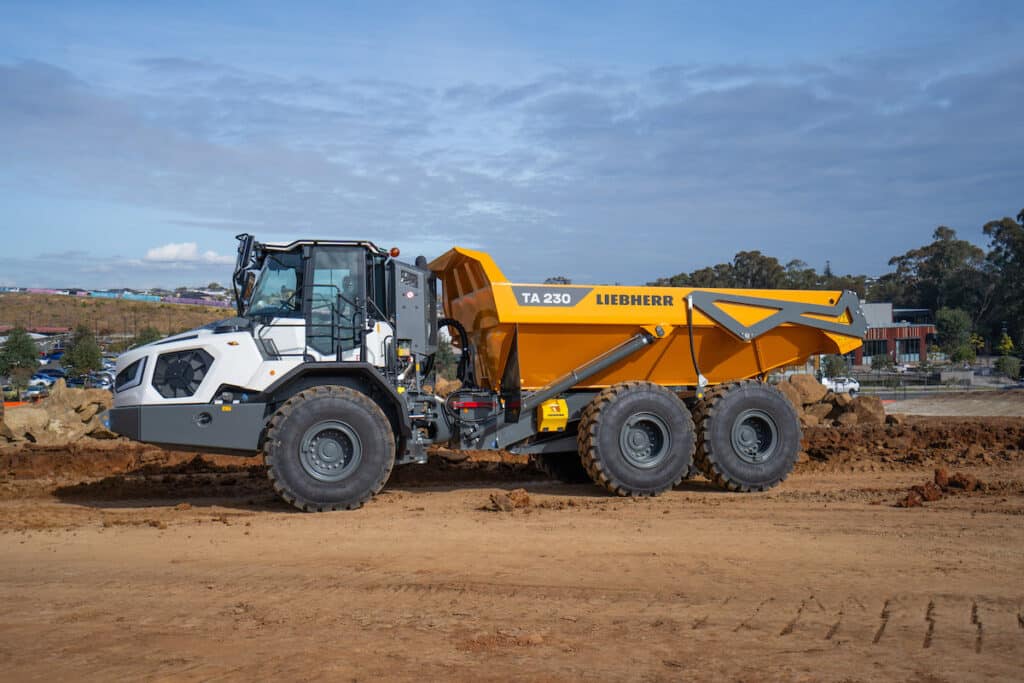

Liebherr TA230 Articulated Dump Truck
Information
Additional information
| Make | |
|---|---|
| Model | TA230 |
| Weight | 25 t |
| Capacity | 28 t |
Equipment Overview
The Liebherr TA230 is an articulated dump truck built for off-road hauling across broken, uneven ground, redesigned as part of Liebherr’s newest generation of ADTs. It carries a rated payload of around 28 tonnes and an 18.1 m³ heaped body, producing 265 kW of power, suited to quarrying, civil earthworks, and general construction hauling where traction and manoeuvrability over rough ground matter most.
Power comes from a six-cylinder, 12.0-litre diesel engine meeting Tier 4 Final emission standards, rated at 265 kW (355 hp). An automatic eight-speed powershift transmission drives all six wheels, with actively controlled longitudinal differential locks providing automatic traction control whenever a wheel starts to slip. Front axle suspension uses A-rods and shock absorbers at the articulation joint, while the rear axles ride on separate, oscillating A-rods, and the whole truck stays under three metres wide for easier low-loader transport.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | 6-cylinder diesel, 12.0 L |
| Power | 265 kW (355 hp) |
| Max Torque | NA |
| Emission Standard | Tier 4 Final |
| Transmission | Automatic 8-speed powershift |
| Drive Type | Six-wheel drive (6×6) with automatic traction control |
| Operating Weight (Empty) | 24,585 kg |
| Gross Weight (Loaded) | 52,585 kg |
| Rated Payload | 28,000 kg |
| Body Capacity (Heaped, SAE 2:1) | 18.1 m³ |
| Max Travel Speed | 57 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 10,370 mm |
| Overall Width | under 3,000 mm |
| Overall Height | NA |
| Turning Radius (SAE) | NA |
Typical Applications
- Quarry face-to-stockpile hauling
- Civil earthworks and road construction
- General construction site bulk haulage
- Rural haul roads with soft or uneven ground
