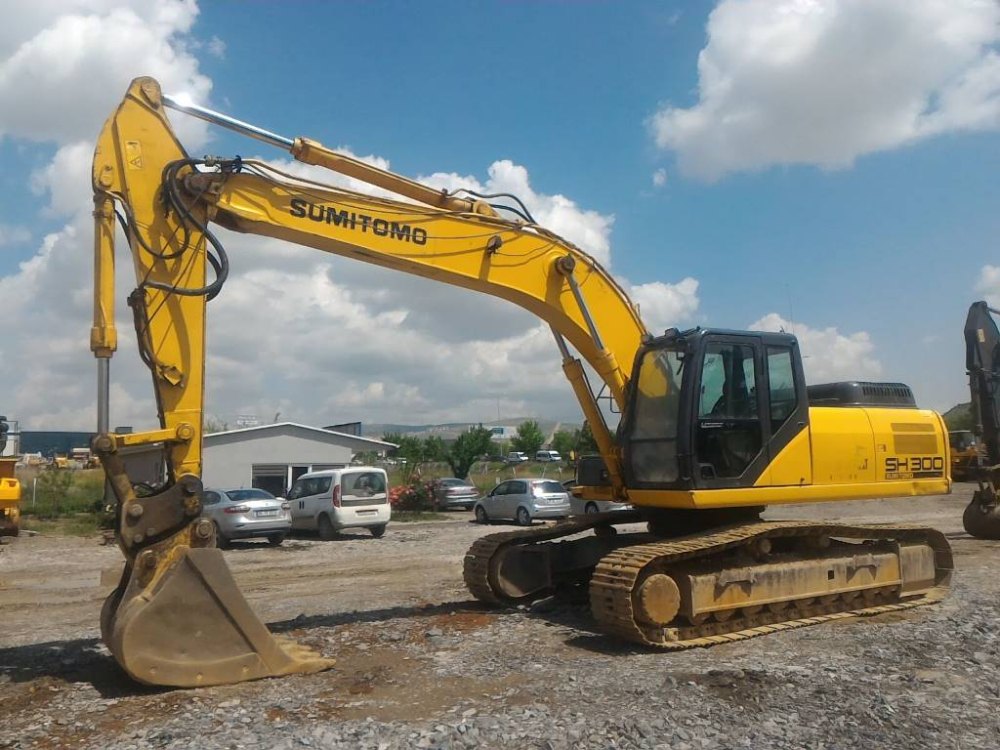

Sumitomo SH300 Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SH300 |
| Weight | 29t |
Equipment Overview
The Sumitomo SH300 is a 29.3 to 31.3-tonne excavator built for high productivity in general construction, quarrying and heavy earthmoving. A unique automatic power boost system increases digging power in quick response to working conditions during heavy-duty digging, continuing for eight seconds in SP or H mode, and cycle times are up to 12% faster than the previous generation. Sumitomo’s Efficient Maintenance System keeps pins and bushes fully lubricated automatically, extending service life and reducing rattling.
Power comes from an Isuzu GH-6HK1X engine, a 7.79-litre diesel producing 202 kW at 2,000 rpm. Bucket capacity ranges from 1.0 to 1.3 m³ ISO heaped, and a hydraulic oil change interval of 5,000 hours with a 2,000-hour return filter change interval keeps maintenance costs down over a long working life. Two variable displacement axial piston main pumps with a regulating system give the machine strong, responsive hydraulic performance.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Isuzu GH-6HK1X, 7.79 L diesel |
| Power Output | 202 kW @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2 variable displacement axial piston pumps |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 29,300 kg to 31,300 kg |
| Digging Depth | 6,570 mm to 7,580 mm |
| Bucket Capacity | 1.0 m³ to 1.3 m³ |
| Reach | 10,670 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 10,450 mm |
| Width | 3,200 mm |
| Height | 3,110 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- Mass excavation and heavy construction
- Quarry and infrastructure work
- Truck loading and material handling
- Deep trenching and foundation work
