EquipmentKomatsu PC290LC Medium Excavator
Model
PC290LC

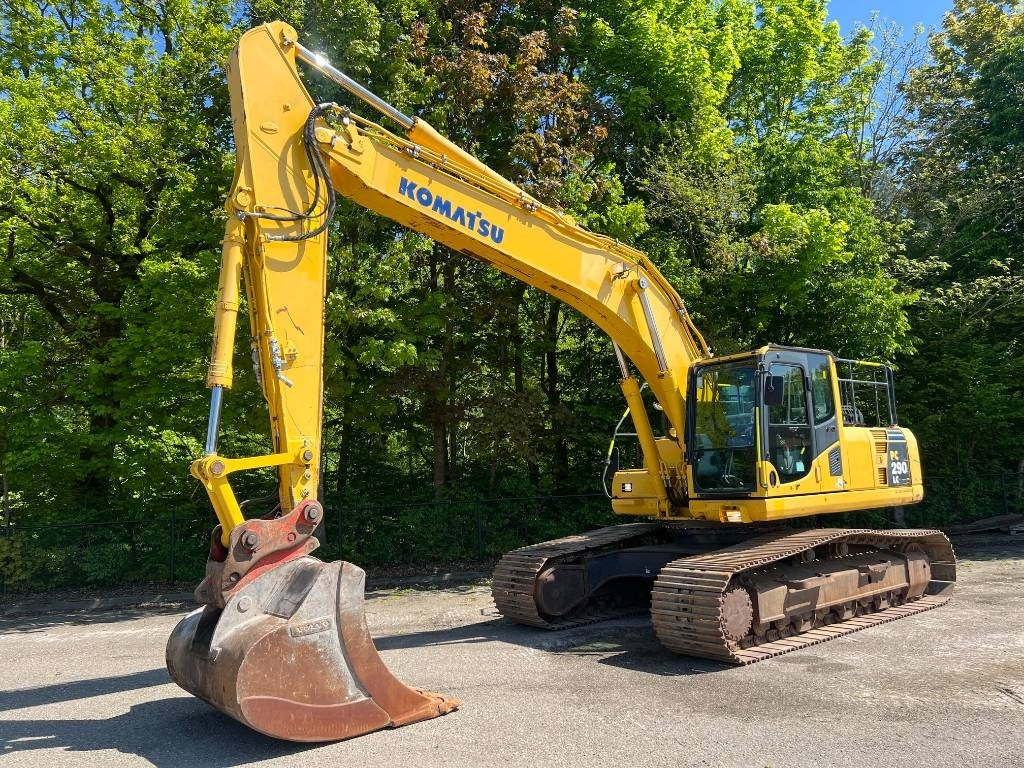

Komatsu PC290LC Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | PC290LC |
| Weight | 30 t |
Equipment Overview
The Komatsu PC290LC is a 29.8 to 31.2-tonne mid-size excavator built for extended reach with a stable platform, pairing a long arm and boom with a heavy-duty undercarriage. Large high-strength steel castings on the boom, arm and bucket link add durability, and booms and arms built from thick, high-tensile steel plate with large cross-sectional areas give the machine high resistance to bending and torsional stress over a long working life.
Power comes from a Komatsu engine producing 147 kW (196 hp) at 2,050 rpm, meeting EPA Tier 4 Final emissions standards. Closed-center load-sensing hydraulics give precise, fine control along with smooth operation and quick cycle times, while large displacement, high-efficiency pumps deliver optimal attachment flow at lower engine rpm for better fuel efficiency. Bucket capacity ranges from 0.43 to 1.39 m³ depending on the attachment fitted.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu diesel |
| Power Output | 147 kW (196 hp) @ 2,050 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final |
| Transmission | Hydrostatic, closed-center load-sensing |
| Drive Type | Steel track |
| Operating Weight | 29,800 kg to 31,210 kg |
| Digging Depth | NA |
| Bucket Capacity | 0.43 m³ to 1.39 m³ |
| Reach | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height (top of cab) | 3,176 mm |
| Track Width | NA |
| Tail Swing Radius | NA |
Typical Applications
- Long-reach general excavation
- Deep trenching and foundation work
- Truck loading and material handling
- Site development and bulk earthworks
