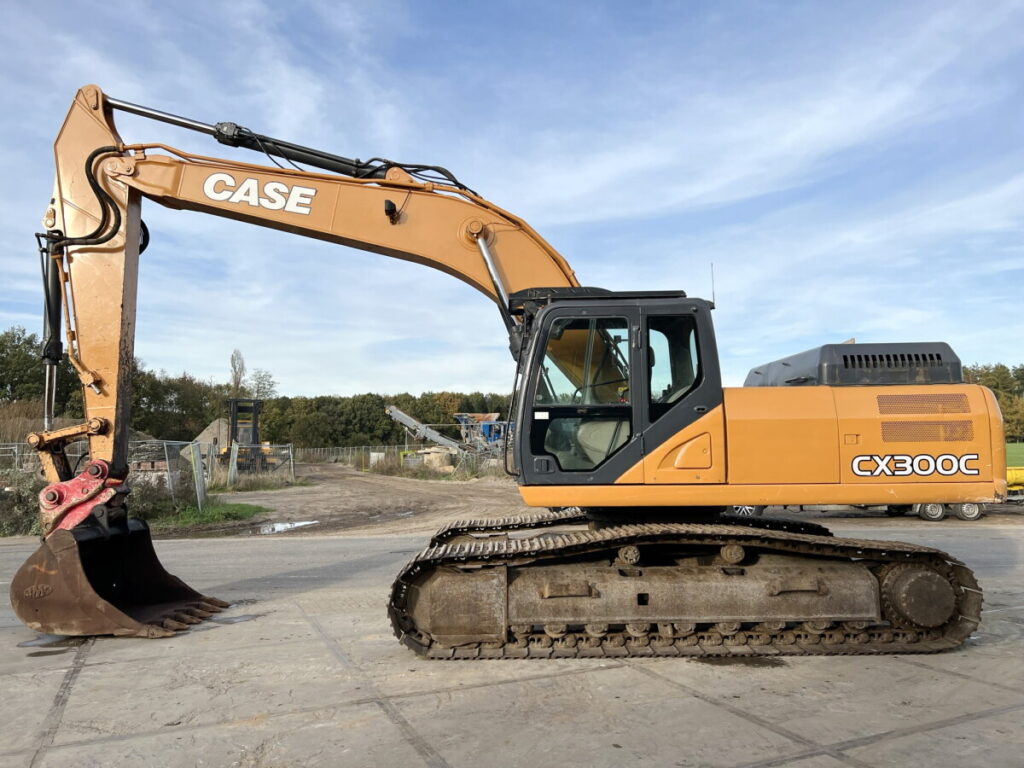

CASE CX300C Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | CX300C |
| Weight | 30 t |
Equipment Overview
The CASE CX300C is a 29.9-tonne excavator built for infrastructure, urban, recycling and quarrying work. CASE’s Intelligent Hydraulic System pairs an advanced pump torque control system with three selectable power modes to match output to the task, and a unique energy management setup with five energy-saving controls delivers around 10% better fuel economy than the previous generation. A newly designed heavy-duty boom and arm add durability and reduce maintenance costs over the machine’s working life.
Power comes from an Isuzu GH-6HK1X engine, a 7.79-litre, 6-cylinder in-line diesel with a high-pressure common rail system and variable geometry turbocharger, producing 154 kW (207 hp) at 1,800 rpm and 909 Nm of torque at 1,500 rpm, meeting EPA Tier 4 Interim emissions standards through triple exhaust gas recirculation and an auto-regenerating DPD system. Tropical cooling comes as standard, and heavy-duty boom and dipper arm options are available for tougher applications.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Isuzu GH-6HK1X, 6-cylinder diesel, 7.79 L |
| Power Output | 154 kW (207 hp) @ 1,800 rpm |
| Max Torque | 909 Nm @ 1,500 rpm |
| Emission Standard | EPA Tier 4 Interim |
| Transmission | Hydrostatic, 2 variable displacement axial piston pumps |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 29,900 kg |
| Digging Depth | 7,100 mm |
| Bucket Capacity | NA |
| Reach | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | 9,950 mm |
| Width | 3,390 mm |
| Height | 3,200 mm |
| Track Width | 800 mm |
| Tail Swing Radius | NA |
Typical Applications
- Infrastructure and urban construction
- Quarrying and recycling operations
- Mass excavation and bulk earthworks
- Loading and material handling
