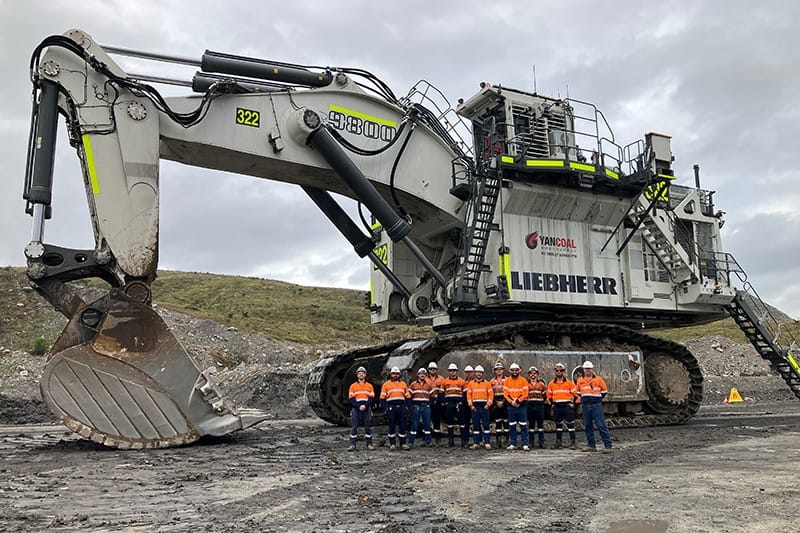

Liebherr R9800 Mining Excavator
Information
Additional information
| Make | |
|---|---|
| Model | R9800 |
| Weight | 800t |
Equipment Overview
The Liebherr R9800 is an 800 to 810-tonne mining excavator, the flagship of Liebherr’s mining excavator range, developed as the optimal loading tool for large-scale mining operations. It’s the right match for the Liebherr T264 and T284 mining trucks, forming a pairing suited to 240, 290 and 360-tonne class trucks. Engineered for optimum serviceability, the machine is designed to ensure maximum uptime, and a modern cab creates a comfortable working environment to support peak operator performance every shift.
Power comes from a diesel engine producing 2,984 kW (4,000 hp) at 1,800 rpm, with a choice of Cummins or MTU as the preferred engine partner and an electric drive version also available. Bucket capacity is 42.0 m³ in both shovel and backhoe configuration, and bucket digging force reaches 1,760 kN. Maximum digging depth is 9 m, and the machine’s ultra-high-flow hydraulic system with advanced load-sensing technology delivers exceptional digging force and smooth, efficient operation for the largest surface mining sites in the world.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel (Cummins or MTU) |
| Power Output | 2,984 kW (4,000 hp) @ 1,800 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, load-sensing |
| Drive Type | Steel track, 1,630 mm shoes |
| Operating Weight | 800,000 kg to 810,000 kg |
| Digging Depth | 9,000 mm |
| Bucket Capacity | 42.0 m³ |
| Reach | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Track Width | 1,630 mm |
| Tail Swing Radius | NA |
Typical Applications
- Ultra-large-scale surface mining excavation
- Copper mining and oil sands extraction
- Continuous heavy truck loading
- Massive open-pit and quarrying operations
